Molex 5055681071

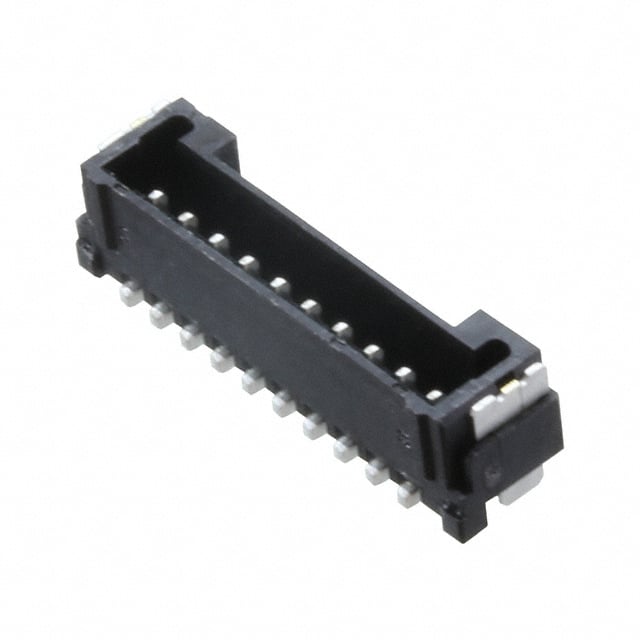

Image shown is a representation only
Manufacturer
Manufacturer No
5055681071
Quantity
3587
Availability
In Stock
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
CONN HEADER SMD 10POS 1.25MM
Detailed Description
Connector Header Surface Mount 10 position 0.049" (1.25mm)
DataSheet
Mfr
Molex
Style
Board to Cable/Wire
Series
Micro-Lock PLUS 505568
Features
Solder Retention
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Shrouding
Shrouded - 4 Wall
Part Status
Active
Termination
Solder
Applications
Automotive, General Purpose, Industrial
Contact Type
Male Pin
Contact Shape
Square
Mounting Type
Surface Mount
Connector Type
Header
Fastening Type
Push-Pull
Number of Rows
1
Pitch - Mating
0.049" (1.25mm)
Voltage Rating
50VAC/DC
Contact Material
Brass
Insulation Color
Black
Insulation Height
0.165" (4.20mm)
Base Product Number
505568
Insulation Material
Polyamide (PA), Nylon, Glass Filled
Number of Positions
10
Contact Finish - Post
Tin
Current Rating (Amps)
Varies by Wire Gauge
Operating Temperature
-40°C ~ 105°C
Mated Stacking Heights
7.4mm
Contact Finish - Mating
Tin
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
39.4µin (1.00µm)
Contact Finish Thickness - Mating
39.4µin (1.00µm)
| Attribute | Value |
|---|---|
| Mfr | Molex |
| Style | Board to Cable/Wire |
| Series | Micro-Lock PLUS 505568 |
| Features | Solder Retention |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Shrouding | Shrouded - 4 Wall |
| Part Status | Active |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial |
| Contact Type | Male Pin |
| Contact Shape | Square |
| Mounting Type | Surface Mount |
| Connector Type | Header |
| Fastening Type | Push-Pull |
| Number of Rows | 1 |
| Pitch - Mating | 0.049" (1.25mm) |
| Voltage Rating | 50VAC/DC |
| Contact Material | Brass |
| Insulation Color | Black |
| Insulation Height | 0.165" (4.20mm) |
| Base Product Number | 505568 |
| Insulation Material | Polyamide (PA), Nylon, Glass Filled |
| Number of Positions | 10 |
| Contact Finish - Post | Tin |
| Current Rating (Amps) | Varies by Wire Gauge |
| Operating Temperature | -40°C ~ 105°C |
| Mated Stacking Heights | 7.4mm |
| Contact Finish - Mating | Tin |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | 39.4µin (1.00µm) |
| Contact Finish Thickness - Mating | 39.4µin (1.00µm) |
