Molex 5054333481

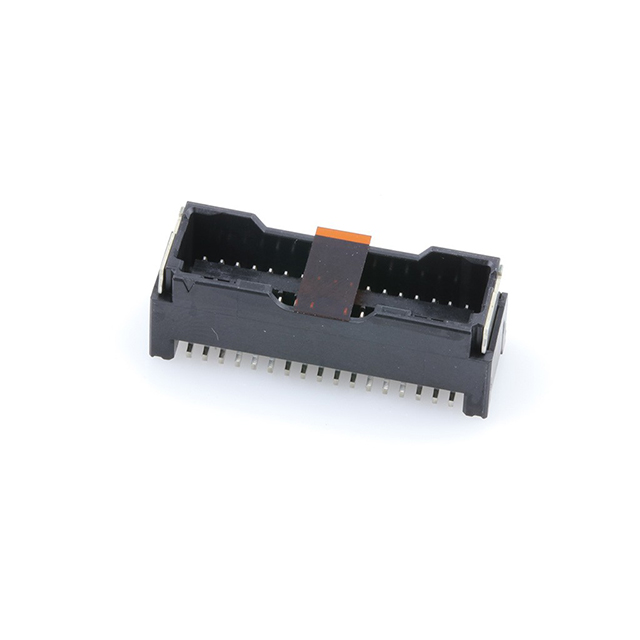

Image shown is a representation only
Manufacturer
Manufacturer No
5054333481
Quantity
4328
Availability
In Stock
Packaging
Tape & Reel (TR)
Description
CONN HEADER SMD 34POS 1.25MM
Detailed Description
Connector Header Surface Mount 34 position 0.049" (1.25mm)
DataSheet
Mfr
Molex
Style
Board to Cable/Wire
Series
Micro-Lock PLUS 505433
Features
Pick and Place, Solder Retention
Packaging
Tape & Reel (TR)
Shrouding
Shrouded - 4 Wall
Part Status
Active
Termination
Solder
Applications
Automotive, General Purpose, Industrial
Contact Type
Male Pin
Contact Shape
Square
Mounting Type
Surface Mount
Connector Type
Header
Fastening Type
Latch Holder
Number of Rows
2
Pitch - Mating
0.049" (1.25mm)
Voltage Rating
50VAC/DC
Contact Material
Brass
Insulation Color
Black
Insulation Height
0.285" (7.25mm)
Base Product Number
505433
Insulation Material
Polyamide (PA), Nylon
Number of Positions
34
Contact Finish - Post
Tin
Current Rating (Amps)
Varies by Wire Gauge
Operating Temperature
-40°C ~ 105°C
Mated Stacking Heights
8.6mm
Contact Finish - Mating
Tin
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
39.4µin (1.00µm)
Contact Finish Thickness - Mating
39.4µin (1.00µm)
| Attribute | Value |
|---|---|
| Mfr | Molex |
| Style | Board to Cable/Wire |
| Series | Micro-Lock PLUS 505433 |
| Features | Pick and Place, Solder Retention |
| Packaging | Tape & Reel (TR) |
| Shrouding | Shrouded - 4 Wall |
| Part Status | Active |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial |
| Contact Type | Male Pin |
| Contact Shape | Square |
| Mounting Type | Surface Mount |
| Connector Type | Header |
| Fastening Type | Latch Holder |
| Number of Rows | 2 |
| Pitch - Mating | 0.049" (1.25mm) |
| Voltage Rating | 50VAC/DC |
| Contact Material | Brass |
| Insulation Color | Black |
| Insulation Height | 0.285" (7.25mm) |
| Base Product Number | 505433 |
| Insulation Material | Polyamide (PA), Nylon |
| Number of Positions | 34 |
| Contact Finish - Post | Tin |
| Current Rating (Amps) | Varies by Wire Gauge |
| Operating Temperature | -40°C ~ 105°C |
| Mated Stacking Heights | 8.6mm |
| Contact Finish - Mating | Tin |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | 39.4µin (1.00µm) |
| Contact Finish Thickness - Mating | 39.4µin (1.00µm) |
