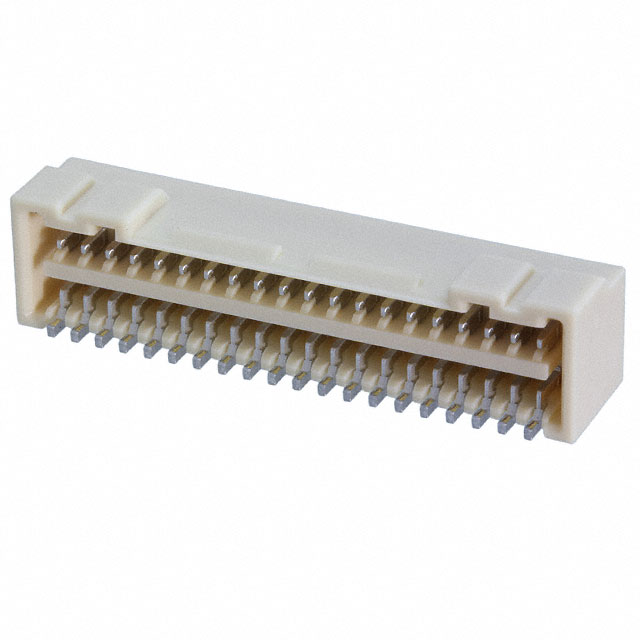

Molex 5041894070
Image shown is a representation only
Manufacturer
Manufacturer No
5041894070
Packaging
Cut Tape (CT);
Description
CONN HEADER SMD R/A 40POS 1.25MM
Detailed Description
Connector Header Surface Mount, Right Angle 40 position 0.049" (1.25mm)
DataSheet
Mfr
Molex
Style
Board to Cable/Wire
Series
Micro-Lock 504189
Packaging
Cut Tape (CT); Digi-Reel®
Shrouding
Shrouded - 4 Wall
Part Status
Active
Termination
Solder
Contact Type
Male Blade
Contact Shape
Rectangular
Mounting Type
Surface Mount, Right Angle
Connector Type
Header
Fastening Type
Latch Lock
Number of Rows
2
Pitch - Mating
0.049" (1.25mm)
Contact Material
Brass
Insulation Color
Natural
Insulation Height
0.241" (6.13mm)
Base Product Number
504189
Insulation Material
Polyamide (PA), Nylon, Glass Filled
Number of Positions
40
Contact Finish - Post
Tin
Contact Finish - Mating
Tin
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Mating
39.4µin (1.00µm)
| Attribute | Value |
|---|---|
| Mfr | Molex |
| Style | Board to Cable/Wire |
| Series | Micro-Lock 504189 |
| Packaging | Cut Tape (CT); Digi-Reel® |
| Shrouding | Shrouded - 4 Wall |
| Part Status | Active |
| Termination | Solder |
| Contact Type | Male Blade |
| Contact Shape | Rectangular |
| Mounting Type | Surface Mount, Right Angle |
| Connector Type | Header |
| Fastening Type | Latch Lock |
| Number of Rows | 2 |
| Pitch - Mating | 0.049" (1.25mm) |
| Contact Material | Brass |
| Insulation Color | Natural |
| Insulation Height | 0.241" (6.13mm) |
| Base Product Number | 504189 |
| Insulation Material | Polyamide (PA), Nylon, Glass Filled |
| Number of Positions | 40 |
| Contact Finish - Post | Tin |
| Contact Finish - Mating | Tin |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Mating | 39.4µin (1.00µm) |
