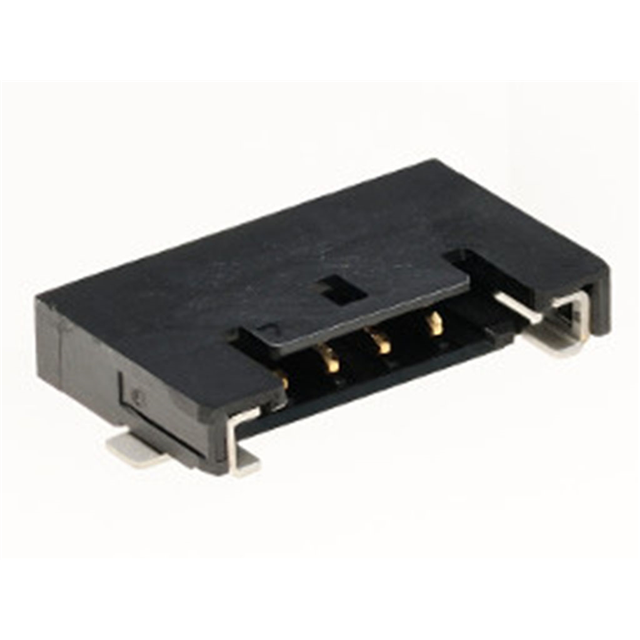

Molex 5037630591
Image shown is a representation only
Manufacturer
Manufacturer No
5037630591
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
CONN HEADER SMD R/A 5POS 1MM
Detailed Description
Connector Header Surface Mount, Right Angle 5 position 0.039" (1.00mm)
DataSheet
Mfr
Molex
Style
Board to Cable/Wire
Series
Pico-Lock 503763
Features
Solder Retention
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Shrouding
Shrouded - 4 Wall
Part Status
Active
Termination
Solder
Applications
Automotive, General Purpose, Industrial, Lighting, Telecommunications
Contact Type
Male Pin
Contact Shape
Square
Mounting Type
Surface Mount, Right Angle
Connector Type
Header
Fastening Type
Detent Lock
Number of Rows
1
Pitch - Mating
0.039" (1.00mm)
Voltage Rating
150V
Contact Material
Copper Alloy
Insulation Color
Black
Insulation Height
0.059" (1.50mm)
Base Product Number
503763
Insulation Material
Polyamide (PA), Nylon
Number of Positions
5
Contact Finish - Post
Gold
Current Rating (Amps)
Varies by Wire Gauge
Operating Temperature
-40°C ~ 105°C
Contact Finish - Mating
Gold
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Mating
3.94µin (0.100µm)
| Attribute | Value |
|---|---|
| Mfr | Molex |
| Style | Board to Cable/Wire |
| Series | Pico-Lock 503763 |
| Features | Solder Retention |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Shrouding | Shrouded - 4 Wall |
| Part Status | Active |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial, Lighting, Telecommunications |
| Contact Type | Male Pin |
| Contact Shape | Square |
| Mounting Type | Surface Mount, Right Angle |
| Connector Type | Header |
| Fastening Type | Detent Lock |
| Number of Rows | 1 |
| Pitch - Mating | 0.039" (1.00mm) |
| Voltage Rating | 150V |
| Contact Material | Copper Alloy |
| Insulation Color | Black |
| Insulation Height | 0.059" (1.50mm) |
| Base Product Number | 503763 |
| Insulation Material | Polyamide (PA), Nylon |
| Number of Positions | 5 |
| Contact Finish - Post | Gold |
| Current Rating (Amps) | Varies by Wire Gauge |
| Operating Temperature | -40°C ~ 105°C |
| Contact Finish - Mating | Gold |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Mating | 3.94µin (0.100µm) |
