Step1: Product

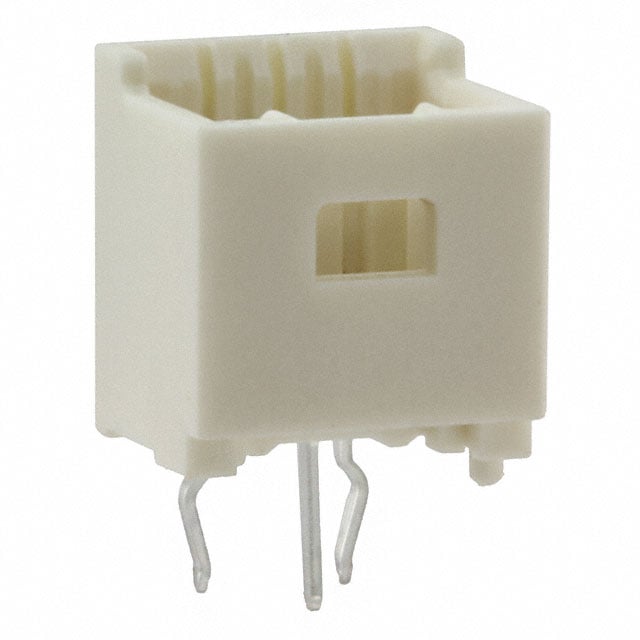

Molex 5031590300
Image shown is a representation only
Manufacturer
Manufacturer No
5031590300
Quantity
2735
Availability
In Stock
Packaging
Tray
Description
CONN RCPT 3POS 0.059 TIN PCB
Detailed Description
3 Position Receptacle Connector 0.059" (1.50mm) Through Hole Tin
DataSheet
Mfr
Molex
Style
Board to Cable/Wire
Series
CLIK-Mate 503159
Features
Board Guide
Packaging
Tray
Part Status
Active
Termination
Kinked Pin, Solder
Applications
Automotive, General Purpose, Industrial, Lighting, Medical
Contact Type
Forked
Mounting Type
Through Hole
Connector Type
Receptacle
Fastening Type
Latch Holder
Number of Rows
1
Pitch - Mating
0.059" (1.50mm)
Contact Material
Copper Alloy
Insulation Color
Beige
Insulation Height
0.313" (7.95mm)
Base Product Number
503159
Insulation Material
Polyamide (PA), Nylon
Number of Positions
3
Contact Finish - Post
Tin
Contact Length - Post
0.134" (3.40mm)
Operating Temperature
-40°C ~ 105°C
Contact Finish - Mating
Tin
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
39.4µin (1.00µm)
Contact Finish Thickness - Mating
39.4µin (1.00µm)
| Attribute | Value |
|---|---|
| Mfr | Molex |
| Style | Board to Cable/Wire |
| Series | CLIK-Mate 503159 |
| Features | Board Guide |
| Packaging | Tray |
| Part Status | Active |
| Termination | Kinked Pin, Solder |
| Applications | Automotive, General Purpose, Industrial, Lighting, Medical |
| Contact Type | Forked |
| Mounting Type | Through Hole |
| Connector Type | Receptacle |
| Fastening Type | Latch Holder |
| Number of Rows | 1 |
| Pitch - Mating | 0.059" (1.50mm) |
| Contact Material | Copper Alloy |
| Insulation Color | Beige |
| Insulation Height | 0.313" (7.95mm) |
| Base Product Number | 503159 |
| Insulation Material | Polyamide (PA), Nylon |
| Number of Positions | 3 |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.134" (3.40mm) |
| Operating Temperature | -40°C ~ 105°C |
| Contact Finish - Mating | Tin |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | 39.4µin (1.00µm) |
| Contact Finish Thickness - Mating | 39.4µin (1.00µm) |
