Step1: Product
Molex 5031542690

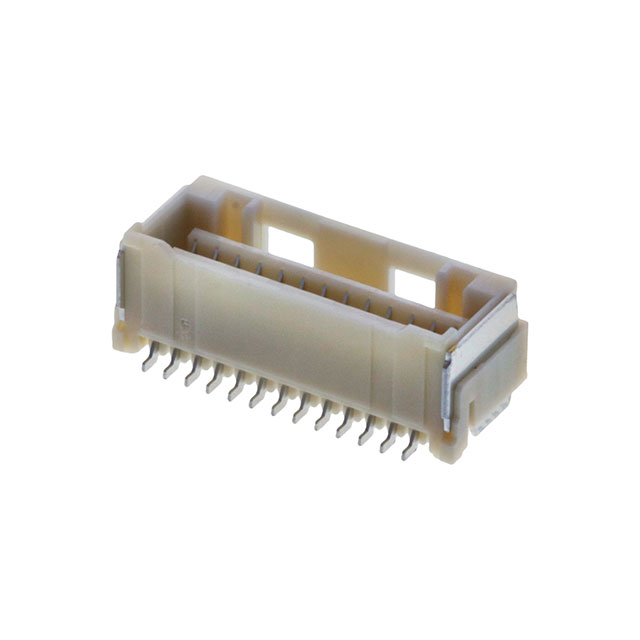

Image shown is a representation only
Manufacturer
Manufacturer No
5031542690
Quantity
40
Availability
In Stock
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
CONN RCPT 26POS 0.059 TIN SMD
Detailed Description
26 Position Receptacle Connector 0.059" (1.50mm) Surface Mount Tin
DataSheet
Mfr
Molex
Style
Board to Cable/Wire
Series
CLIK-Mate 503154
Features
Pick and Place, Solder Retention
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Part Status
Active
Termination
Solder
Applications
Automotive, General Purpose, Industrial, Lighting, Medical
Contact Type
Forked
Mounting Type
Surface Mount
Connector Type
Receptacle
Fastening Type
Latch Holder
Number of Rows
2
Pitch - Mating
0.059" (1.50mm)
Contact Material
Copper Alloy
Insulation Color
Beige
Insulation Height
0.344" (8.75mm)
Base Product Number
503154
Insulation Material
Resin
Number of Positions
26
Contact Finish - Post
Tin
Operating Temperature
-40°C ~ 105°C
Contact Finish - Mating
Tin
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
39.4µin (1.00µm)
Contact Finish Thickness - Mating
39.4µin (1.00µm)
| Attribute | Value |
|---|---|
| Mfr | Molex |
| Style | Board to Cable/Wire |
| Series | CLIK-Mate 503154 |
| Features | Pick and Place, Solder Retention |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Part Status | Active |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial, Lighting, Medical |
| Contact Type | Forked |
| Mounting Type | Surface Mount |
| Connector Type | Receptacle |
| Fastening Type | Latch Holder |
| Number of Rows | 2 |
| Pitch - Mating | 0.059" (1.50mm) |
| Contact Material | Copper Alloy |
| Insulation Color | Beige |
| Insulation Height | 0.344" (8.75mm) |
| Base Product Number | 503154 |
| Insulation Material | Resin |
| Number of Positions | 26 |
| Contact Finish - Post | Tin |
| Operating Temperature | -40°C ~ 105°C |
| Contact Finish - Mating | Tin |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | 39.4µin (1.00µm) |
| Contact Finish Thickness - Mating | 39.4µin (1.00µm) |
