Step1: Product

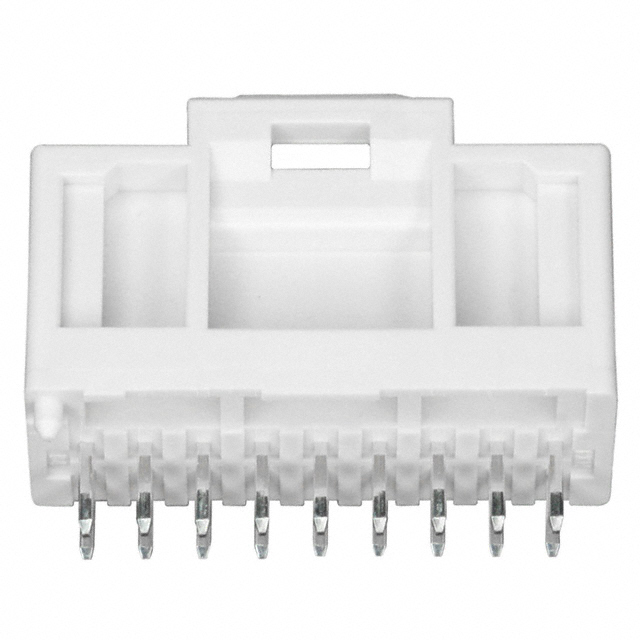

Molex 5016451820
Image shown is a representation only
Manufacturer
Manufacturer No
5016451820
Quantity
6993
Availability
In Stock
Packaging
Tray
Description
CONN HEADER VERT 18POS 2MM
Detailed Description
Connector Header Through Hole 18 position 0.079" (2.00mm)
DataSheet
Mfr
Molex
Style
Board to Cable/Wire
Series
iGrid 501645
Features
Board Guide
Packaging
Tray
Shrouding
Shrouded - 4 Wall
Part Status
Active
Termination
Solder
Applications
Automotive, General Purpose, Industrial, Medical, Telecommunications
Contact Type
Male Pin
Contact Shape
Square
Mounting Type
Through Hole
Connector Type
Header
Fastening Type
Latch Holder
Number of Rows
2
Pitch - Mating
0.079" (2.00mm)
Contact Material
Brass
Insulation Color
Natural
Insulation Height
0.472" (12.00mm)
Base Product Number
501645
Insulation Material
Polyamide (PA66), Nylon 6/6, Glass Filled
Number of Positions
18
Row Spacing - Mating
0.079" (2.00mm)
Contact Finish - Post
Tin
Contact Length - Post
0.126" (3.20mm)
Contact Finish - Mating
Tin
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Mfr | Molex |
| Style | Board to Cable/Wire |
| Series | iGrid 501645 |
| Features | Board Guide |
| Packaging | Tray |
| Shrouding | Shrouded - 4 Wall |
| Part Status | Active |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial, Medical, Telecommunications |
| Contact Type | Male Pin |
| Contact Shape | Square |
| Mounting Type | Through Hole |
| Connector Type | Header |
| Fastening Type | Latch Holder |
| Number of Rows | 2 |
| Pitch - Mating | 0.079" (2.00mm) |
| Contact Material | Brass |
| Insulation Color | Natural |
| Insulation Height | 0.472" (12.00mm) |
| Base Product Number | 501645 |
| Insulation Material | Polyamide (PA66), Nylon 6/6, Glass Filled |
| Number of Positions | 18 |
| Row Spacing - Mating | 0.079" (2.00mm) |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.126" (3.20mm) |
| Contact Finish - Mating | Tin |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
