Step1: Product

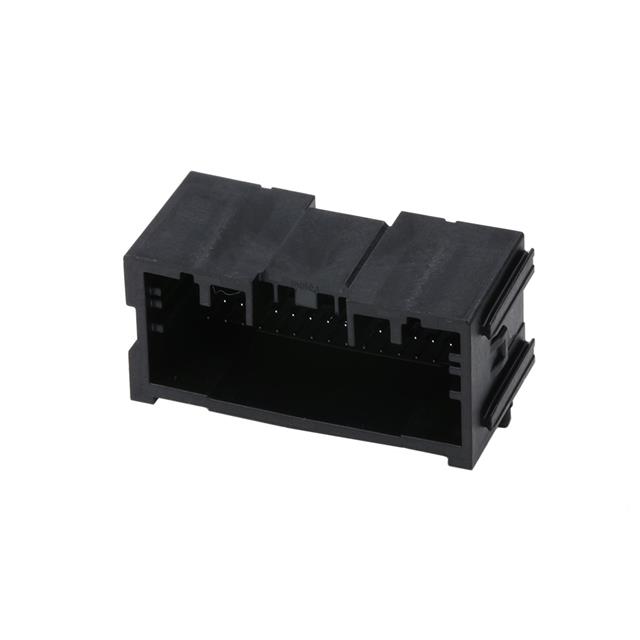

Molex 2133550343
Image shown is a representation only
Manufacturer
Manufacturer No
2133550343
Packaging
Bulk
Description
2133550343
Detailed Description
Connector Header Through Hole, Right Angle 34 position 0.079" (2.00mm)
DataSheet
Mfr
Molex
Style
Board to Cable/Wire
Series
Mini50 213355
Features
Board Guide
Packaging
Bulk
Shrouding
Shrouded - 4 Wall
Part Status
Active
Termination
Solder
Contact Type
Male Blade; Male Pin
Contact Shape
Rectangular, Square
Mounting Type
Through Hole, Right Angle
Connector Type
Header, Breakaway
Fastening Type
Latch Holder
Number of Rows
3
Pitch - Mating
0.079" (2.00mm)
Voltage Rating
500VDC
Contact Material
Brass
Insulation Color
Black
Insulation Height
0.654" (16.61mm)
Base Product Number
213355
Insulation Material
Syndiotactic Polystyrene (SPS), Glass Filled
Number of Positions
34
Contact Finish - Post
Tin
Contact Length - Post
0.108" (2.75mm)
Current Rating (Amps)
16A per Contact
Operating Temperature
-40°C ~ 105°C
Contact Finish - Mating
Tin
Contact Length - Mating
0.215" (5.46mm)
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Mfr | Molex |
| Style | Board to Cable/Wire |
| Series | Mini50 213355 |
| Features | Board Guide |
| Packaging | Bulk |
| Shrouding | Shrouded - 4 Wall |
| Part Status | Active |
| Termination | Solder |
| Contact Type | Male Blade; Male Pin |
| Contact Shape | Rectangular, Square |
| Mounting Type | Through Hole, Right Angle |
| Connector Type | Header, Breakaway |
| Fastening Type | Latch Holder |
| Number of Rows | 3 |
| Pitch - Mating | 0.079" (2.00mm) |
| Voltage Rating | 500VDC |
| Contact Material | Brass |
| Insulation Color | Black |
| Insulation Height | 0.654" (16.61mm) |
| Base Product Number | 213355 |
| Insulation Material | Syndiotactic Polystyrene (SPS), Glass Filled |
| Number of Positions | 34 |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.108" (2.75mm) |
| Current Rating (Amps) | 16A per Contact |
| Operating Temperature | -40°C ~ 105°C |
| Contact Finish - Mating | Tin |
| Contact Length - Mating | 0.215" (5.46mm) |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
