Step1: Product
Molex 2121340005

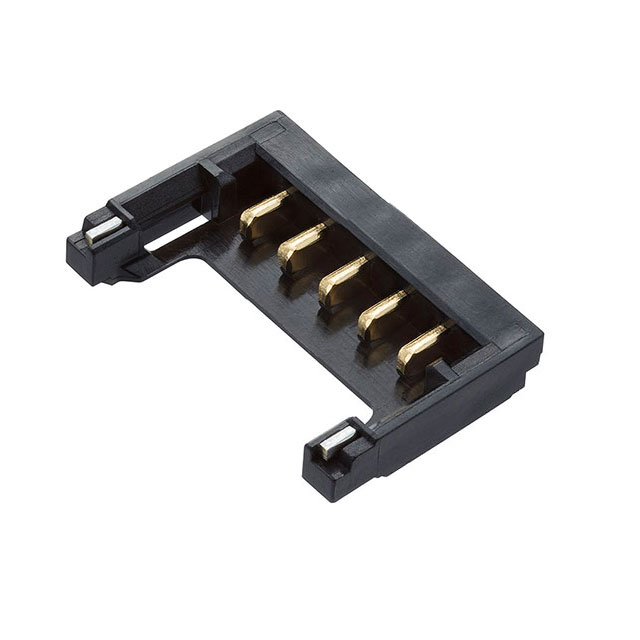

Image shown is a representation only
Manufacturer
Manufacturer No
2121340005
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
PICO-EZMATE PLUS1.0 PLUGASSY ETP
Detailed Description
Connector Header Surface Mount, Right Angle 5 position 0.039" (1.00mm)
DataSheet
Mfr
Molex
Style
Board to Cable/Wire
Series
Pico-EZmate Plus 212134
Features
Solder Retention
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Shrouding
Shrouded - 3 Wall
Part Status
Active
Termination
Solder
Contact Type
Tab
Contact Shape
Rectangular
Mounting Type
Surface Mount, Right Angle
Connector Type
Plug
Fastening Type
Friction Lock
Number of Rows
1
Pitch - Mating
0.039" (1.00mm)
Voltage Rating
50VAC/DC
Contact Material
Copper Alloy
Insulation Color
Black
Insulation Height
0.047" (1.20mm)
Base Product Number
212134
Insulation Material
Polyamide (PA), Nylon, Glass Filled
Number of Positions
5
Contact Finish - Post
Gold
Current Rating (Amps)
Varies by Wire Gauge
Operating Temperature
-40°C ~ 105°C
Contact Finish - Mating
Gold
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Mating
3.94µin (0.100µm)
| Attribute | Value |
|---|---|
| Mfr | Molex |
| Style | Board to Cable/Wire |
| Series | Pico-EZmate Plus 212134 |
| Features | Solder Retention |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Shrouding | Shrouded - 3 Wall |
| Part Status | Active |
| Termination | Solder |
| Contact Type | Tab |
| Contact Shape | Rectangular |
| Mounting Type | Surface Mount, Right Angle |
| Connector Type | Plug |
| Fastening Type | Friction Lock |
| Number of Rows | 1 |
| Pitch - Mating | 0.039" (1.00mm) |
| Voltage Rating | 50VAC/DC |
| Contact Material | Copper Alloy |
| Insulation Color | Black |
| Insulation Height | 0.047" (1.20mm) |
| Base Product Number | 212134 |
| Insulation Material | Polyamide (PA), Nylon, Glass Filled |
| Number of Positions | 5 |
| Contact Finish - Post | Gold |
| Current Rating (Amps) | Varies by Wire Gauge |
| Operating Temperature | -40°C ~ 105°C |
| Contact Finish - Mating | Gold |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Mating | 3.94µin (0.100µm) |
