Step1: Product

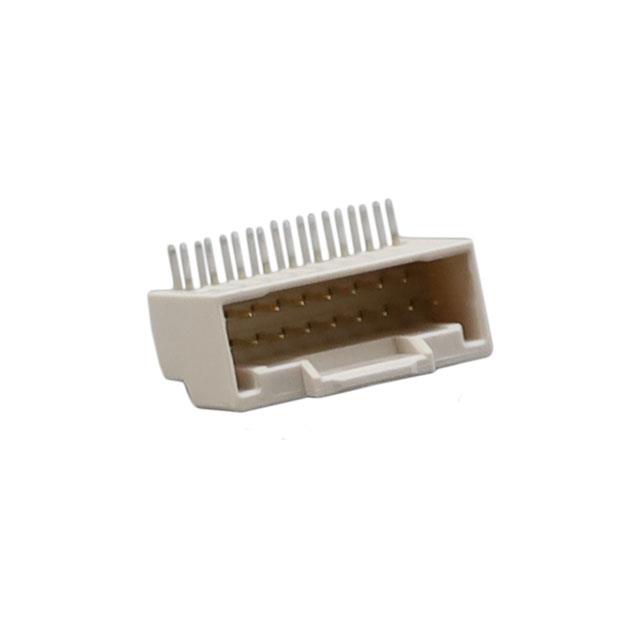

Molex 2086591840
Image shown is a representation only
Manufacturer
Manufacturer No
2086591840
Quantity
60
Availability
In Stock
Packaging
Tray
Description
IGRID2.0 PLUGTHOLEHDR RA GF NAT
Detailed Description
Connector Header Through Hole, Right Angle 18 position 0.079" (2.00mm)
DataSheet
Mfr
Molex
Style
Board to Cable/Wire
Series
iGrid 208659
Packaging
Tray
Shrouding
Shrouded - 4 Wall
Part Status
Active
Termination
Solder
Contact Type
Male Pin
Contact Shape
Square
Mounting Type
Through Hole, Right Angle
Connector Type
Plug
Fastening Type
Latch Lock
Number of Rows
2
Pitch - Mating
0.079" (2.00mm)
Voltage Rating
250VAC/DC
Contact Material
Brass
Insulation Color
Beige
Insulation Height
0.327" (8.30mm)
Base Product Number
208659
Insulation Material
Polyamide (PA), Nylon, Glass Filled
Number of Positions
18
Row Spacing - Mating
0.079" (2.00mm)
Contact Finish - Post
Tin
Contact Length - Post
0.126" (3.20mm)
Current Rating (Amps)
Varies by Wire Gauge
Operating Temperature
-40°C ~ 105°C
Contact Finish - Mating
Gold
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
39.4µin (1.00µm)
Contact Finish Thickness - Mating
3.94µin (0.100µm)
| Attribute | Value |
|---|---|
| Mfr | Molex |
| Style | Board to Cable/Wire |
| Series | iGrid 208659 |
| Packaging | Tray |
| Shrouding | Shrouded - 4 Wall |
| Part Status | Active |
| Termination | Solder |
| Contact Type | Male Pin |
| Contact Shape | Square |
| Mounting Type | Through Hole, Right Angle |
| Connector Type | Plug |
| Fastening Type | Latch Lock |
| Number of Rows | 2 |
| Pitch - Mating | 0.079" (2.00mm) |
| Voltage Rating | 250VAC/DC |
| Contact Material | Brass |
| Insulation Color | Beige |
| Insulation Height | 0.327" (8.30mm) |
| Base Product Number | 208659 |
| Insulation Material | Polyamide (PA), Nylon, Glass Filled |
| Number of Positions | 18 |
| Row Spacing - Mating | 0.079" (2.00mm) |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.126" (3.20mm) |
| Current Rating (Amps) | Varies by Wire Gauge |
| Operating Temperature | -40°C ~ 105°C |
| Contact Finish - Mating | Gold |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | 39.4µin (1.00µm) |
| Contact Finish Thickness - Mating | 3.94µin (0.100µm) |
