Step1: Product
Molex 2078430008

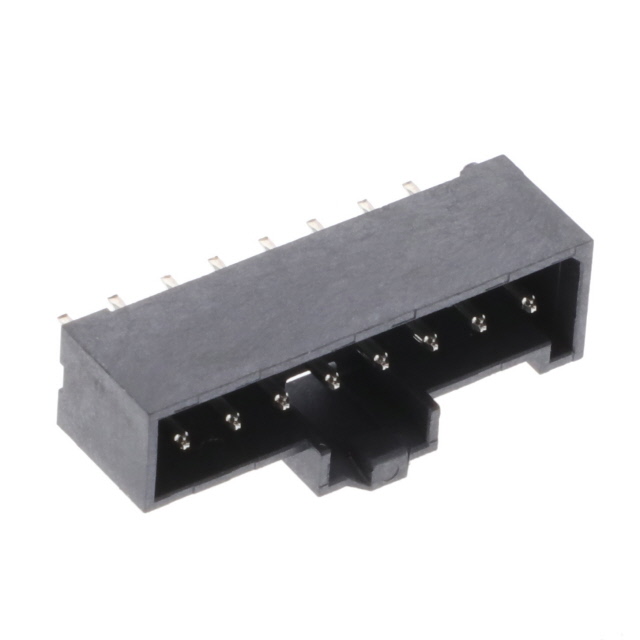

Image shown is a representation only
Manufacturer
Manufacturer No
2078430008
Quantity
25
Availability
In Stock
Packaging
Tray
Description
HDR ASSBY FOR L1NK 250 - 1X8 CKT
Detailed Description
Connector Header Through Hole 8 position 0.098" (2.50mm)
DataSheet
Mfr
Molex
Style
Board to Cable/Wire
Series
L1NK 250 207843
Features
Board Guide
Packaging
Tray
Shrouding
Shrouded - 4 Wall
Part Status
Active
Termination
Solder
Applications
Automotive, General Purpose, Industrial, Medical, Telecommunications
Contact Type
Male Pin
Contact Shape
Square
Mounting Type
Through Hole
Connector Type
Header
Fastening Type
Latch Holder
Number of Rows
1
Pitch - Mating
0.098" (2.50mm)
Voltage Rating
250VAC/DC
Contact Material
Brass Alloy
Insulation Color
Black
Insulation Height
0.264" (6.70mm)
Base Product Number
207843
Insulation Material
Liquid Crystal Polymer (LCP)
Number of Positions
8
Contact Finish - Post
Tin
Contact Length - Post
0.136" (3.46mm)
Current Rating (Amps)
Varies by Wire Gauge
Operating Temperature
-40°C ~ 105°C
Contact Finish - Mating
Tin
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Mfr | Molex |
| Style | Board to Cable/Wire |
| Series | L1NK 250 207843 |
| Features | Board Guide |
| Packaging | Tray |
| Shrouding | Shrouded - 4 Wall |
| Part Status | Active |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial, Medical, Telecommunications |
| Contact Type | Male Pin |
| Contact Shape | Square |
| Mounting Type | Through Hole |
| Connector Type | Header |
| Fastening Type | Latch Holder |
| Number of Rows | 1 |
| Pitch - Mating | 0.098" (2.50mm) |
| Voltage Rating | 250VAC/DC |
| Contact Material | Brass Alloy |
| Insulation Color | Black |
| Insulation Height | 0.264" (6.70mm) |
| Base Product Number | 207843 |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Number of Positions | 8 |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.136" (3.46mm) |
| Current Rating (Amps) | Varies by Wire Gauge |
| Operating Temperature | -40°C ~ 105°C |
| Contact Finish - Mating | Tin |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
