Molex 2069584082

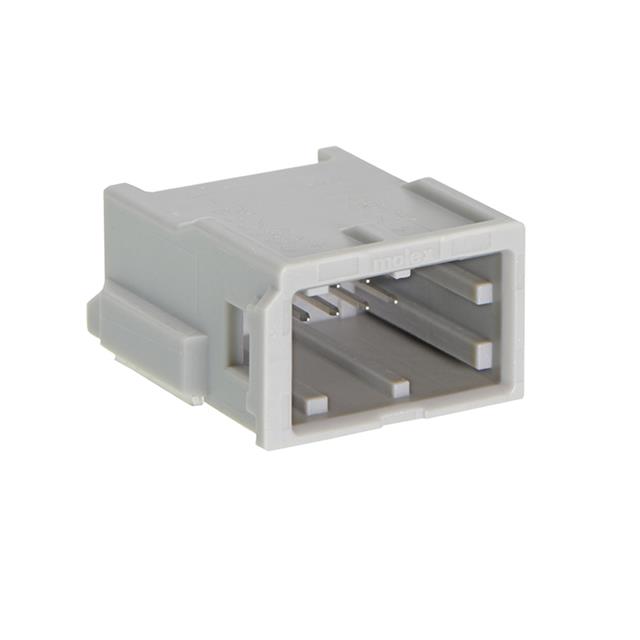

Image shown is a representation only
Manufacturer
Manufacturer No
2069584082
Packaging
Bulk
Description
CONNTAK50 10CKT R/A SMT 2VOID PO
Detailed Description
Connector Header Surface Mount, Right Angle 8 position 0.071" (1.80mm)
DataSheet
Mfr
Molex
Style
Board to Cable/Wire
Series
CONNTAK50 206958
Packaging
Bulk
Shrouding
Shrouded - 4 Wall
Part Status
Obsolete
Termination
Solder
Contact Type
Male Pin
Contact Shape
Square
Mounting Type
Surface Mount, Right Angle
Connector Type
Header
Fastening Type
Latch Holder
Number of Rows
2
Pitch - Mating
0.071" (1.80mm)
Voltage Rating
14VAC/DC
Contact Material
Brass
Insulation Color
Natural
Insulation Height
0.431" (10.95mm)
Base Product Number
206958
Insulation Material
Syndiotactic Polystyrene (SPS), Glass Filled
Number of Positions
8
Row Spacing - Mating
0.059" (1.50mm)
Current Rating (Amps)
Varies by Wire Gauge
Operating Temperature
-40°C ~ 105°C
Contact Finish - Mating
Tin
Number of Positions Loaded
All
Contact Finish Thickness - Mating
39.4µin (1.00µm)
| Attribute | Value |
|---|---|
| Mfr | Molex |
| Style | Board to Cable/Wire |
| Series | CONNTAK50 206958 |
| Packaging | Bulk |
| Shrouding | Shrouded - 4 Wall |
| Part Status | Obsolete |
| Termination | Solder |
| Contact Type | Male Pin |
| Contact Shape | Square |
| Mounting Type | Surface Mount, Right Angle |
| Connector Type | Header |
| Fastening Type | Latch Holder |
| Number of Rows | 2 |
| Pitch - Mating | 0.071" (1.80mm) |
| Voltage Rating | 14VAC/DC |
| Contact Material | Brass |
| Insulation Color | Natural |
| Insulation Height | 0.431" (10.95mm) |
| Base Product Number | 206958 |
| Insulation Material | Syndiotactic Polystyrene (SPS), Glass Filled |
| Number of Positions | 8 |
| Row Spacing - Mating | 0.059" (1.50mm) |
| Current Rating (Amps) | Varies by Wire Gauge |
| Operating Temperature | -40°C ~ 105°C |
| Contact Finish - Mating | Tin |
| Number of Positions Loaded | All |
| Contact Finish Thickness - Mating | 39.4µin (1.00µm) |
