Step1: Product
Molex 2005020121

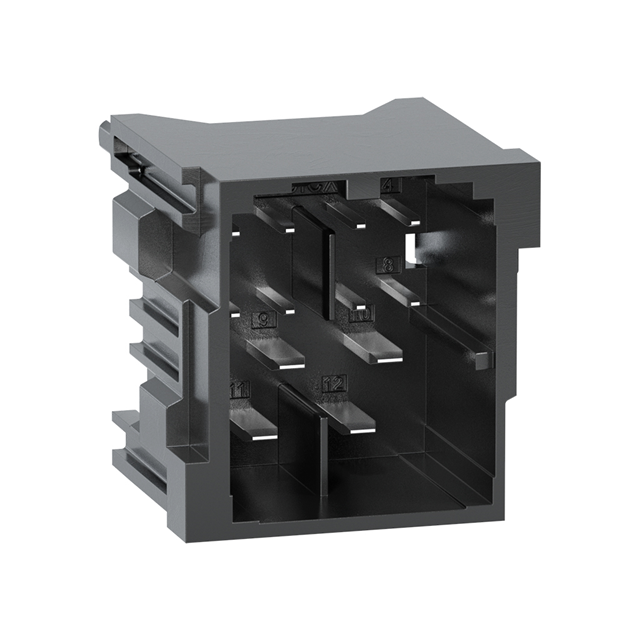

Image shown is a representation only
Manufacturer
Manufacturer No
2005020121
Quantity
19
Availability
In Stock
Packaging
Tube
Description
STAK50 ASSY RA HDR SOLDER
Detailed Description
Connector Header Through Hole, Right Angle 12 position
DataSheet
Mfr
Molex
Style
Board to Cable/Wire
Series
stAK50h 200502
Features
Board Guide
Packaging
Tube
Shrouding
Shrouded - 4 Wall
Part Status
Active
Termination
Solder
Applications
Automotive
Contact Type
Male Blade
Contact Shape
Rectangular
Mounting Type
Through Hole, Right Angle
Connector Type
Header
Number of Rows
4
Voltage Rating
14VDC
Contact Material
Copper Alloy
Insulation Color
Black
Insulation Height
1.063" (27.00mm)
Base Product Number
200502
Insulation Material
Syndiotactic Polystyrene (SPS), Glass Filled
Number of Positions
12
Contact Finish - Post
Tin
Contact Length - Post
0.102" (2.60mm)
Current Rating (Amps)
13A, 23A
Operating Temperature
-40°C ~ 85°C
Contact Finish - Mating
Tin
Number of Positions Loaded
All
| Attribute | Value |
|---|---|
| Mfr | Molex |
| Style | Board to Cable/Wire |
| Series | stAK50h 200502 |
| Features | Board Guide |
| Packaging | Tube |
| Shrouding | Shrouded - 4 Wall |
| Part Status | Active |
| Termination | Solder |
| Applications | Automotive |
| Contact Type | Male Blade |
| Contact Shape | Rectangular |
| Mounting Type | Through Hole, Right Angle |
| Connector Type | Header |
| Number of Rows | 4 |
| Voltage Rating | 14VDC |
| Contact Material | Copper Alloy |
| Insulation Color | Black |
| Insulation Height | 1.063" (27.00mm) |
| Base Product Number | 200502 |
| Insulation Material | Syndiotactic Polystyrene (SPS), Glass Filled |
| Number of Positions | 12 |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.102" (2.60mm) |
| Current Rating (Amps) | 13A, 23A |
| Operating Temperature | -40°C ~ 85°C |
| Contact Finish - Mating | Tin |
| Number of Positions Loaded | All |
