Step1: Product
Molex 1722871106

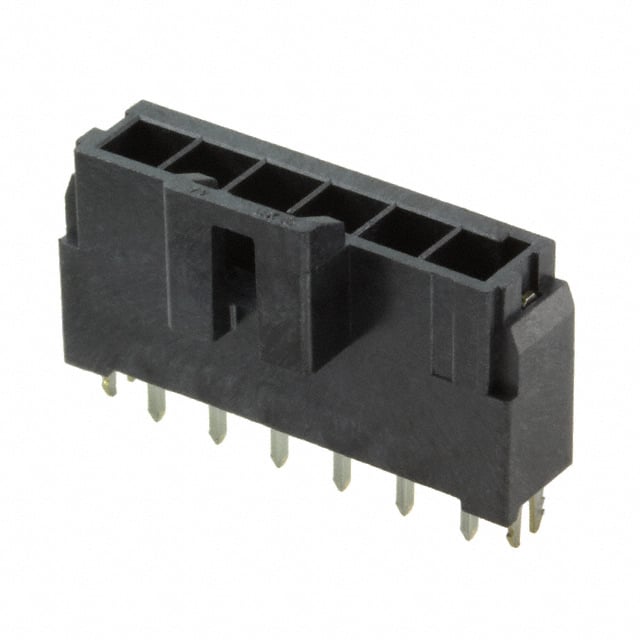

Image shown is a representation only
Manufacturer
Manufacturer No
1722871106
Quantity
50
Availability
In Stock
Packaging
Bulk
Description
CONN HEADER VERT 6POS 3.5MM
Detailed Description
Connector Header Through Hole 6 position 0.138" (3.50mm)
DataSheet
Mfr
Molex
Style
Board to Cable/Wire
Series
Ultra-Fit 172287
Features
Solder Retention
Packaging
Bulk
Shrouding
Shrouded - 4 Wall
Part Status
Active
Termination
Solder
Applications
Automotive, General Purpose, Industrial, Lighting, Medical, Military, Telecommunications
Contact Type
Male Pin
Contact Shape
Square
Mounting Type
Through Hole
Connector Type
Header
Fastening Type
Latch Holder
Number of Rows
1
Pitch - Mating
0.138" (3.50mm)
Voltage Rating
400V
Contact Material
Copper Alloy
Insulation Color
Black
Insulation Height
0.465" (11.80mm)
Base Product Number
172287
Insulation Material
Liquid Crystal Polymer (LCP)
Number of Positions
6
Contact Finish - Post
Tin
Contact Length - Post
0.126" (3.20mm)
Operating Temperature
-40°C ~ 105°C
Mated Stacking Heights
26.99mm
Contact Finish - Mating
Tin
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
60.0µin (1.52µm)
Contact Finish Thickness - Mating
60.0µin (1.52µm)
| Attribute | Value |
|---|---|
| Mfr | Molex |
| Style | Board to Cable/Wire |
| Series | Ultra-Fit 172287 |
| Features | Solder Retention |
| Packaging | Bulk |
| Shrouding | Shrouded - 4 Wall |
| Part Status | Active |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial, Lighting, Medical, Military, Telecommunications |
| Contact Type | Male Pin |
| Contact Shape | Square |
| Mounting Type | Through Hole |
| Connector Type | Header |
| Fastening Type | Latch Holder |
| Number of Rows | 1 |
| Pitch - Mating | 0.138" (3.50mm) |
| Voltage Rating | 400V |
| Contact Material | Copper Alloy |
| Insulation Color | Black |
| Insulation Height | 0.465" (11.80mm) |
| Base Product Number | 172287 |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Number of Positions | 6 |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.126" (3.20mm) |
| Operating Temperature | -40°C ~ 105°C |
| Mated Stacking Heights | 26.99mm |
| Contact Finish - Mating | Tin |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | 60.0µin (1.52µm) |
| Contact Finish Thickness - Mating | 60.0µin (1.52µm) |
