Step1: Product

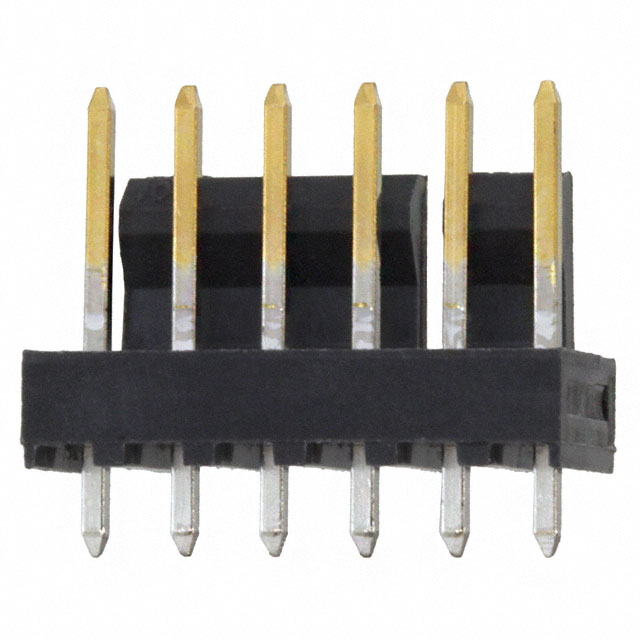

Molex 1718561006
Image shown is a representation only
Manufacturer
Manufacturer No
1718561006
Quantity
50
Availability
In Stock
Packaging
Bulk
Description
CONN HEADER VERT 6POS 2.54MM
Detailed Description
Connector Header Through Hole 6 position 0.100" (2.54mm)
DataSheet
Mfr
Molex
Style
Board to Board or Cable
Series
KK254, 171856
Packaging
Bulk
Shrouding
Shrouded - 1 Wall
Part Status
Active
Termination
Solder
Applications
Automotive, General Purpose, Medical, Telecommunications
Contact Type
Male Pin
Contact Shape
Square
Mounting Type
Through Hole
Connector Type
Header
Fastening Type
Friction Lock
Number of Rows
1
Pitch - Mating
0.100" (2.54mm)
Contact Material
Brass
Insulation Color
Black
Insulation Height
0.322" (8.18mm)
Base Product Number
171856
Insulation Material
Polyamide (PA), Nylon
Number of Positions
6
Contact Finish - Post
Tin
Contact Length - Post
0.092" (2.34mm)
Overall Contact Length
0.510" (12.95mm)
Contact Finish - Mating
Gold
Contact Length - Mating
0.293" (7.45mm)
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-2
Contact Finish Thickness - Post
100.0µin (2.54µm)
Contact Finish Thickness - Mating
15.0µin (0.38µm)
| Attribute | Value |
|---|---|
| Mfr | Molex |
| Style | Board to Board or Cable |
| Series | KK254, 171856 |
| Packaging | Bulk |
| Shrouding | Shrouded - 1 Wall |
| Part Status | Active |
| Termination | Solder |
| Applications | Automotive, General Purpose, Medical, Telecommunications |
| Contact Type | Male Pin |
| Contact Shape | Square |
| Mounting Type | Through Hole |
| Connector Type | Header |
| Fastening Type | Friction Lock |
| Number of Rows | 1 |
| Pitch - Mating | 0.100" (2.54mm) |
| Contact Material | Brass |
| Insulation Color | Black |
| Insulation Height | 0.322" (8.18mm) |
| Base Product Number | 171856 |
| Insulation Material | Polyamide (PA), Nylon |
| Number of Positions | 6 |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.092" (2.34mm) |
| Overall Contact Length | 0.510" (12.95mm) |
| Contact Finish - Mating | Gold |
| Contact Length - Mating | 0.293" (7.45mm) |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-2 |
| Contact Finish Thickness - Post | 100.0µin (2.54µm) |
| Contact Finish Thickness - Mating | 15.0µin (0.38µm) |
