Step1: Product

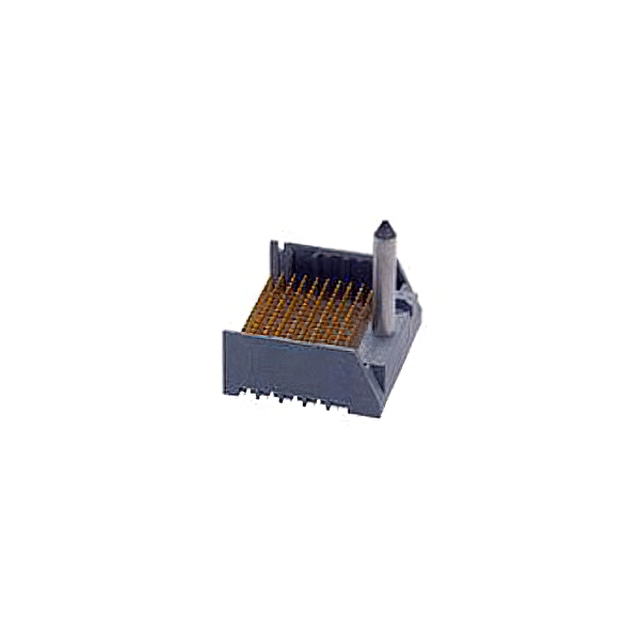

Molex 1705355107
Image shown is a representation only
Manufacturer
Manufacturer No
1705355107
Packaging
Bulk
Description
IMPACT 85OHM 6X10 RIGHT GUIDE BP
Detailed Description
180 Connector Header, Male Pins Through Hole Black
DataSheet
Color
Black
Pitch
0.075" (1.90mm)
Series
Impact 170535
Features
Guide Pin
Packaging
Bulk
Part Status
Active
Termination
Press-Fit
Manufacturer
Molex
Mounting Type
Through Hole
Connector Type
Header, Male Pins
Contact Finish
Gold
Number of Rows
18
Voltage Rating
29.9VAC/DC
Connector Usage
Backplane
Number of Columns
10
Base Product Number
170535
Number of Positions
180
Current Rating (Amps)
0.075A
Operating Temperature
-55°C ~ 85°C
Contact Finish Thickness
30.0µin (0.76µm)
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Color | Black |
| Pitch | 0.075" (1.90mm) |
| Series | Impact 170535 |
| Features | Guide Pin |
| Packaging | Bulk |
| Part Status | Active |
| Termination | Press-Fit |
| Manufacturer | Molex |
| Mounting Type | Through Hole |
| Connector Type | Header, Male Pins |
| Contact Finish | Gold |
| Number of Rows | 18 |
| Voltage Rating | 29.9VAC/DC |
| Connector Usage | Backplane |
| Number of Columns | 10 |
| Base Product Number | 170535 |
| Number of Positions | 180 |
| Current Rating (Amps) | 0.075A |
| Operating Temperature | -55°C ~ 85°C |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
