Step1: Product

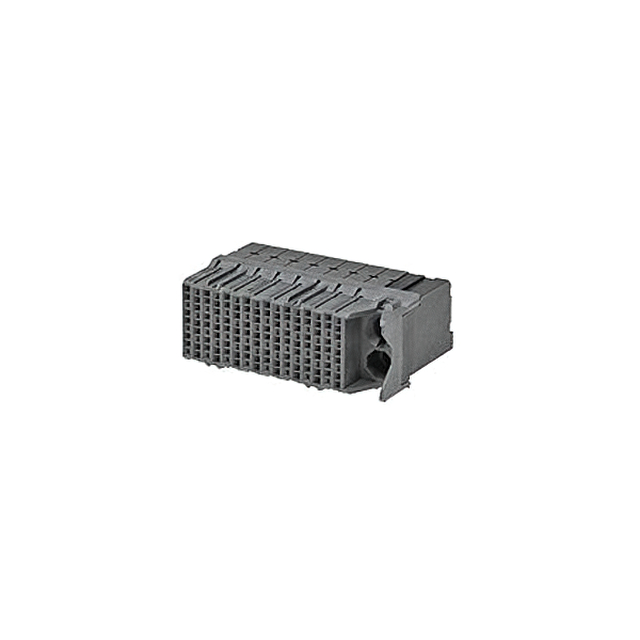

Molex 1705305026
Image shown is a representation only
Manufacturer
Manufacturer No
1705305026
Packaging
Tray
Description
CONN RCPT IMPACT 144POS EDGE MNT
Detailed Description
144 Connector Receptacle, Female Sockets Board Edge, Through Hole, Right Angle Gray Impact, Guide Right
DataSheet
Color
Gray
Series
Impact 170530
Features
Board Guide
Packaging
Tray
Part Status
Active
Termination
Press-Fit
Manufacturer
Molex
Mounting Type
Board Edge, Through Hole, Right Angle
Connector Type
Receptacle, Female Sockets
Contact Finish
Gold
Number of Rows
9
Voltage Rating
30V
Connector Style
Impact, Guide Right
Number of Columns
16
Base Product Number
170530
Number of Positions
144
Operating Temperature
-55°C ~ 85°C
Contact Layout, Typical
48 Differential Pairs
Contact Finish Thickness
30.0µin (0.76µm)
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Color | Gray |
| Series | Impact 170530 |
| Features | Board Guide |
| Packaging | Tray |
| Part Status | Active |
| Termination | Press-Fit |
| Manufacturer | Molex |
| Mounting Type | Board Edge, Through Hole, Right Angle |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Number of Rows | 9 |
| Voltage Rating | 30V |
| Connector Style | Impact, Guide Right |
| Number of Columns | 16 |
| Base Product Number | 170530 |
| Number of Positions | 144 |
| Operating Temperature | -55°C ~ 85°C |
| Contact Layout, Typical | 48 Differential Pairs |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
