Molex 1054291106

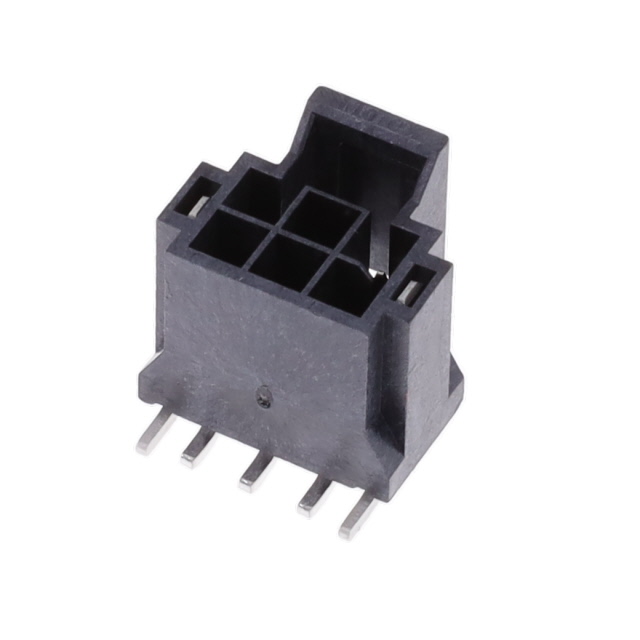

Image shown is a representation only
Manufacturer
Manufacturer No
1054291106
Quantity
2
Availability
In Stock
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
CONN HEADER SMD 6POS 2.5MM
Detailed Description
Connector Header Surface Mount 6 position 0.098" (2.50mm)
DataSheet
Mfr
Molex
Style
Board to Cable/Wire
Series
Nano-Fit 105429
Features
Pick and Place, Solder Retention
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Shrouding
Shrouded - 4 Wall
Part Status
Active
Termination
Solder
Applications
Automotive, General Purpose, Industrial, Medical, Military, Telecommunications
Contact Type
Male Pin
Contact Shape
Square
Mounting Type
Surface Mount
Connector Type
Header
Fastening Type
Latch Holder
Number of Rows
2
Pitch - Mating
0.098" (2.50mm)
Voltage Rating
250VAC
Contact Material
Brass
Insulation Color
Black
Insulation Height
0.382" (9.70mm)
Base Product Number
105429
Insulation Material
Liquid Crystal Polymer (LCP)
Number of Positions
6
Row Spacing - Mating
0.098" (2.50mm)
Contact Finish - Post
Tin
Current Rating (Amps)
4A
Operating Temperature
-40°C ~ 105°C
Contact Finish - Mating
Tin
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
30.0µin (0.76µm)
Contact Finish Thickness - Mating
30.0µin (0.76µm)
| Attribute | Value |
|---|---|
| Mfr | Molex |
| Style | Board to Cable/Wire |
| Series | Nano-Fit 105429 |
| Features | Pick and Place, Solder Retention |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Shrouding | Shrouded - 4 Wall |
| Part Status | Active |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial, Medical, Military, Telecommunications |
| Contact Type | Male Pin |
| Contact Shape | Square |
| Mounting Type | Surface Mount |
| Connector Type | Header |
| Fastening Type | Latch Holder |
| Number of Rows | 2 |
| Pitch - Mating | 0.098" (2.50mm) |
| Voltage Rating | 250VAC |
| Contact Material | Brass |
| Insulation Color | Black |
| Insulation Height | 0.382" (9.70mm) |
| Base Product Number | 105429 |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Number of Positions | 6 |
| Row Spacing - Mating | 0.098" (2.50mm) |
| Contact Finish - Post | Tin |
| Current Rating (Amps) | 4A |
| Operating Temperature | -40°C ~ 105°C |
| Contact Finish - Mating | Tin |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | 30.0µin (0.76µm) |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
