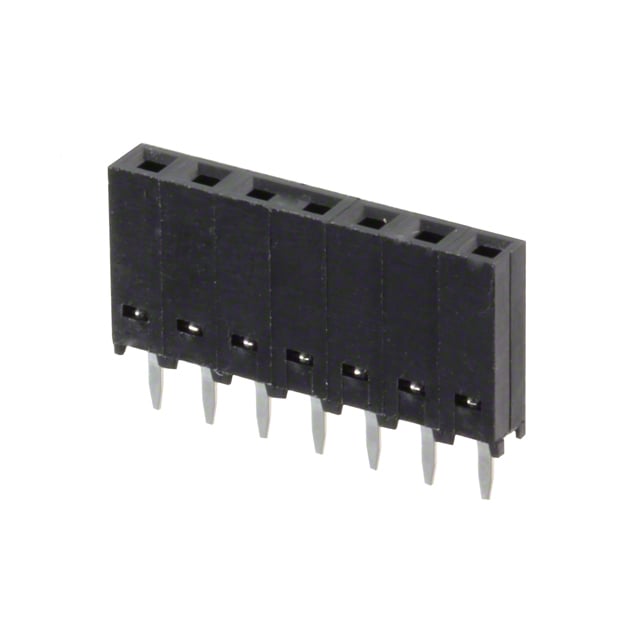

Molex 0901471107
Image shown is a representation only
Manufacturer
Manufacturer No
0901471107
Quantity
20
Availability
In Stock
Packaging
Tube
Description
CONN RCPT 7POS 0.1 TIN PCB
Detailed Description
7 Position Receptacle Connector 0.100" (2.54mm) Through Hole Tin
Datasheet
Mfr
Molex
Style
Board to Board
Series
C-Grid 90147
Packaging
Tube
Termination
Solder
Applications
Automotive, General Purpose, Lighting, Medical, Telecommunications
Contact Type
Female Socket
Contact Shape
Square
Mounting Type
Through Hole
Connector Type
Receptacle
Fastening Type
Push-Pull
Number of Rows
1
Pitch - Mating
0.100" (2.54mm)
Voltage Rating
350V
Contact Material
Phosphor Bronze
Insulation Color
Black
Insulation Height
0.335" (8.51mm)
Base Product Number
090147
Insulation Material
Polyester, Glass Filled
Number of Positions
7
Contact Finish - Post
Tin
Contact Length - Post
0.114" (2.90mm)
Current Rating (Amps)
3A
Operating Temperature
-55°C ~ 105°C
Contact Finish - Mating
Tin
Number of Positions Loaded
All
Contact Finish Thickness - Post
40.0µin (1.02µm)
Contact Finish Thickness - Mating
40.0µin (1.02µm)
| Attribute | Value |
|---|---|
| Mfr | Molex |
| Style | Board to Board |
| Series | C-Grid 90147 |
| Packaging | Tube |
| Termination | Solder |
| Applications | Automotive, General Purpose, Lighting, Medical, Telecommunications |
| Contact Type | Female Socket |
| Contact Shape | Square |
| Mounting Type | Through Hole |
| Connector Type | Receptacle |
| Fastening Type | Push-Pull |
| Number of Rows | 1 |
| Pitch - Mating | 0.100" (2.54mm) |
| Voltage Rating | 350V |
| Contact Material | Phosphor Bronze |
| Insulation Color | Black |
| Insulation Height | 0.335" (8.51mm) |
| Base Product Number | 090147 |
| Insulation Material | Polyester, Glass Filled |
| Number of Positions | 7 |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.114" (2.90mm) |
| Current Rating (Amps) | 3A |
| Operating Temperature | -55°C ~ 105°C |
| Contact Finish - Mating | Tin |
| Number of Positions Loaded | All |
| Contact Finish Thickness - Post | 40.0µin (1.02µm) |
| Contact Finish Thickness - Mating | 40.0µin (1.02µm) |
