Molex 0901471103

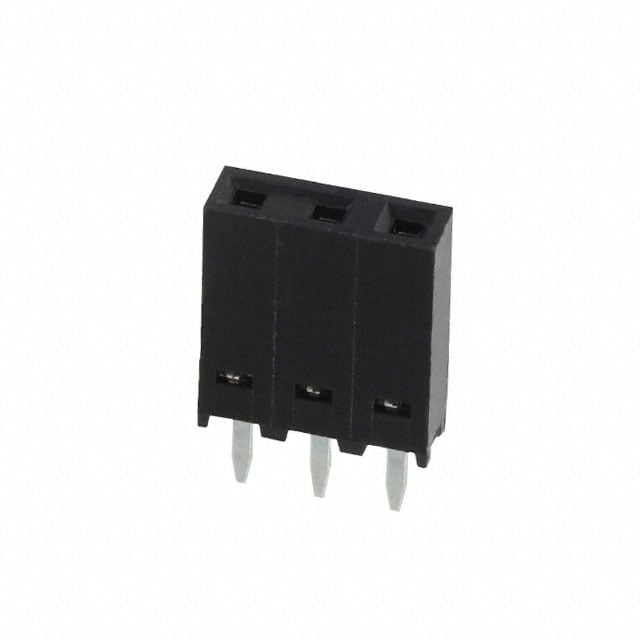

Image shown is a representation only
Manufacturer
Manufacturer No
0901471103
Quantity
76
Availability
In Stock
Packaging
Tube
Description
CONN RCPT 3POS 0.1 TIN PCB
Detailed Description
3 Position Receptacle Connector 0.100" (2.54mm) Through Hole Tin
DataSheet
Mfr
Molex
Style
Board to Board
Series
C-Grid 90147
Packaging
Tube
Part Status
Active
Termination
Solder
Applications
Automotive, General Purpose, Lighting, Medical, Telecommunications
Contact Type
Female Socket
Contact Shape
Square
Mounting Type
Through Hole
Connector Type
Receptacle
Fastening Type
Push-Pull
Number of Rows
1
Pitch - Mating
0.100" (2.54mm)
Voltage Rating
350V
Contact Material
Phosphor Bronze
Insulation Color
Black
Insulation Height
0.335" (8.51mm)
Base Product Number
90147
Insulation Material
Polyester, Glass Filled
Number of Positions
3
Contact Finish - Post
Tin
Contact Length - Post
0.114" (2.90mm)
Current Rating (Amps)
3A
Operating Temperature
-55°C ~ 105°C
Contact Finish - Mating
Tin
Number of Positions Loaded
All
Contact Finish Thickness - Post
40.0µin (1.02µm)
Contact Finish Thickness - Mating
40.0µin (1.02µm)
| Attribute | Value |
|---|---|
| Mfr | Molex |
| Style | Board to Board |
| Series | C-Grid 90147 |
| Packaging | Tube |
| Part Status | Active |
| Termination | Solder |
| Applications | Automotive, General Purpose, Lighting, Medical, Telecommunications |
| Contact Type | Female Socket |
| Contact Shape | Square |
| Mounting Type | Through Hole |
| Connector Type | Receptacle |
| Fastening Type | Push-Pull |
| Number of Rows | 1 |
| Pitch - Mating | 0.100" (2.54mm) |
| Voltage Rating | 350V |
| Contact Material | Phosphor Bronze |
| Insulation Color | Black |
| Insulation Height | 0.335" (8.51mm) |
| Base Product Number | 90147 |
| Insulation Material | Polyester, Glass Filled |
| Number of Positions | 3 |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.114" (2.90mm) |
| Current Rating (Amps) | 3A |
| Operating Temperature | -55°C ~ 105°C |
| Contact Finish - Mating | Tin |
| Number of Positions Loaded | All |
| Contact Finish Thickness - Post | 40.0µin (1.02µm) |
| Contact Finish Thickness - Mating | 40.0µin (1.02µm) |
