Step1: Product

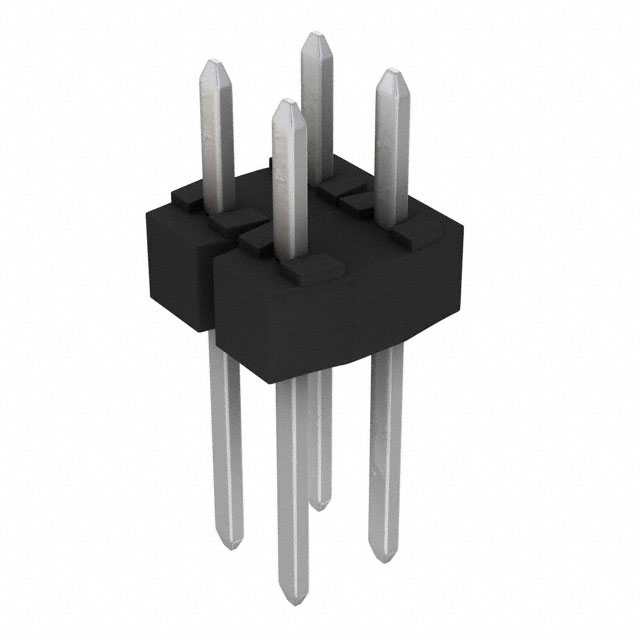

Molex 0901310122
Image shown is a representation only
Manufacturer
Manufacturer No
0901310122
Quantity
159
Availability
In Stock
Packaging
Bulk
Description
CONN HEADER VERT 4POS 2.54MM
Detailed Description
Connector Header Through Hole 4 position 0.100" (2.54mm)
DataSheet
Mfr
Molex
Style
Board to Cable/Wire
Series
C-Grid III 90131
Packaging
Bulk
Shrouding
Unshrouded
Part Status
Discontinued at DigiKey
Termination
Solder
Applications
Automotive, General Purpose
Contact Type
Male Pin
Contact Shape
Square
Mounting Type
Through Hole
Connector Type
Header, Breakaway
Fastening Type
Push-Pull
Number of Rows
2
Pitch - Mating
0.100" (2.54mm)
Contact Material
Brass
Insulation Color
Black
Insulation Height
0.098" (2.50mm)
Base Product Number
090131
Insulation Material
Polyester, Glass Filled
Number of Positions
4
Row Spacing - Mating
0.100" (2.54mm)
Contact Finish - Post
Tin
Contact Length - Post
0.114" (2.90mm)
Overall Contact Length
0.478" (12.15mm)
Contact Finish - Mating
Tin
Contact Length - Mating
0.266" (6.75mm)
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
118.1µin (3.00µm)
Contact Finish Thickness - Mating
118.1µin (3.00µm)
| Attribute | Value |
|---|---|
| Mfr | Molex |
| Style | Board to Cable/Wire |
| Series | C-Grid III 90131 |
| Packaging | Bulk |
| Shrouding | Unshrouded |
| Part Status | Discontinued at DigiKey |
| Termination | Solder |
| Applications | Automotive, General Purpose |
| Contact Type | Male Pin |
| Contact Shape | Square |
| Mounting Type | Through Hole |
| Connector Type | Header, Breakaway |
| Fastening Type | Push-Pull |
| Number of Rows | 2 |
| Pitch - Mating | 0.100" (2.54mm) |
| Contact Material | Brass |
| Insulation Color | Black |
| Insulation Height | 0.098" (2.50mm) |
| Base Product Number | 090131 |
| Insulation Material | Polyester, Glass Filled |
| Number of Positions | 4 |
| Row Spacing - Mating | 0.100" (2.54mm) |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.114" (2.90mm) |
| Overall Contact Length | 0.478" (12.15mm) |
| Contact Finish - Mating | Tin |
| Contact Length - Mating | 0.266" (6.75mm) |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | 118.1µin (3.00µm) |
| Contact Finish Thickness - Mating | 118.1µin (3.00µm) |
