Step1: Product

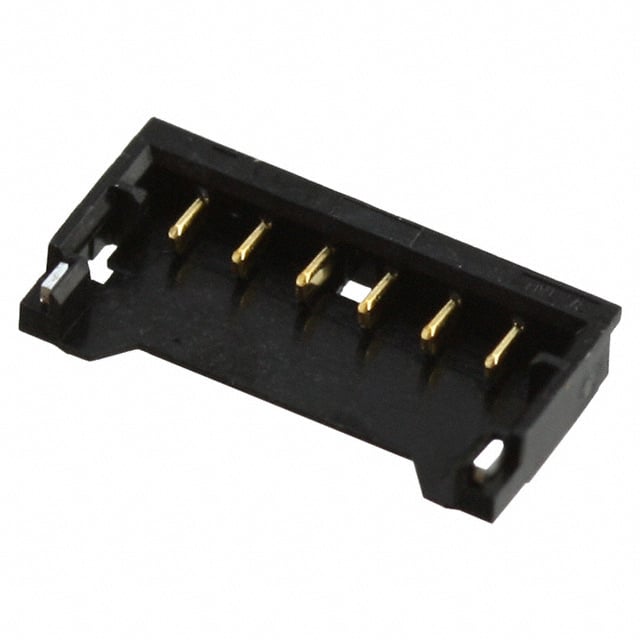

Molex 0781715006
Image shown is a representation only
Manufacturer
Manufacturer No
0781715006
Date Code
1946
Quantity
10,636
Availability
In Stock
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
CONN HEADER SMD 6POS 1.2MM
Detailed Description
Connector Header Surface Mount 6 position 0.047" (1.20mm)
Datasheet
Mfr
Molex
Style
Board to Cable/Wire
Series
Pico-EZmate 78171
Features
Solder Retention
Packaging
Tape & Reel (TR); Cut Tape (CT)
Shrouding
Shrouded - 3 Wall
Termination
Solder
Applications
Automotive, General Purpose, Lighting, Telecommunications
Contact Type
Tab
Contact Shape
Rectangular
Mounting Type
Surface Mount
Connector Type
Plug
Fastening Type
Friction Lock
Number of Rows
1
Pitch - Mating
0.047" (1.20mm)
Voltage Rating
50V
Contact Material
Copper Alloy
Insulation Color
Black
Insulation Height
0.055" (1.40mm)
Base Product Number
078171
Insulation Material
Polyamide (PA46), Nylon 4/6
Number of Positions
6
Operating Temperature
-40°C ~ 105°C
Contact Finish - Mating
Gold
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
| Attribute | Value |
|---|---|
| Mfr | Molex |
| Style | Board to Cable/Wire |
| Series | Pico-EZmate 78171 |
| Features | Solder Retention |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Shrouding | Shrouded - 3 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Lighting, Telecommunications |
| Contact Type | Tab |
| Contact Shape | Rectangular |
| Mounting Type | Surface Mount |
| Connector Type | Plug |
| Fastening Type | Friction Lock |
| Number of Rows | 1 |
| Pitch - Mating | 0.047" (1.20mm) |
| Voltage Rating | 50V |
| Contact Material | Copper Alloy |
| Insulation Color | Black |
| Insulation Height | 0.055" (1.40mm) |
| Base Product Number | 078171 |
| Insulation Material | Polyamide (PA46), Nylon 4/6 |
| Number of Positions | 6 |
| Operating Temperature | -40°C ~ 105°C |
| Contact Finish - Mating | Gold |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
