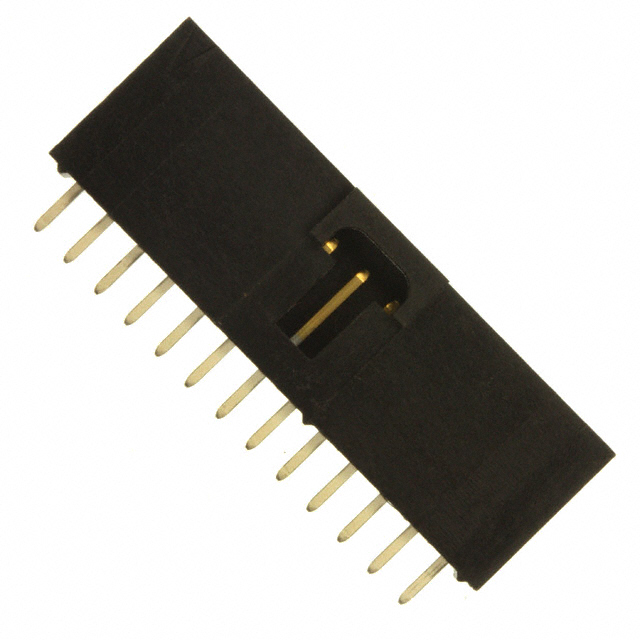

Molex 0705430012
Image shown is a representation only
Manufacturer
Manufacturer No
0705430012
Quantity
70
Availability
In Stock
Packaging
Tube
Description
CONN HEADER VERT 13POS 2.54MM
Detailed Description
Connector Header Through Hole 13 position 0.100" (2.54mm)
Datasheet
Mfr
Molex
Style
Board to Cable/Wire
Series
SL 70543
Packaging
Tube
Shrouding
Shrouded - 4 Wall
Termination
Solder
Applications
Automotive, General Purpose, Industrial, Medical
Contact Type
Male Pin
Contact Shape
Square
Mounting Type
Through Hole
Connector Type
Header
Fastening Type
Latch Holder
Number of Rows
1
Pitch - Mating
0.100" (2.54mm)
Voltage Rating
250V
Contact Material
Phosphor Bronze
Insulation Color
Black
Insulation Height
0.465" (11.80mm)
Base Product Number
070543
Insulation Material
Polyester, Glass Filled
Number of Positions
13
Contact Finish - Post
Tin
Contact Length - Post
0.130" (3.30mm)
Operating Temperature
-40°C ~ 105°C
Overall Contact Length
0.470" (11.94mm)
Contact Finish - Mating
Gold
Contact Length - Mating
0.240" (6.10mm)
Number of Positions Loaded
All
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Post
74.8µin (1.90µm)
Contact Finish Thickness - Mating
15.0µin (0.38µm)
| Attribute | Value |
|---|---|
| Mfr | Molex |
| Style | Board to Cable/Wire |
| Series | SL 70543 |
| Packaging | Tube |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | Automotive, General Purpose, Industrial, Medical |
| Contact Type | Male Pin |
| Contact Shape | Square |
| Mounting Type | Through Hole |
| Connector Type | Header |
| Fastening Type | Latch Holder |
| Number of Rows | 1 |
| Pitch - Mating | 0.100" (2.54mm) |
| Voltage Rating | 250V |
| Contact Material | Phosphor Bronze |
| Insulation Color | Black |
| Insulation Height | 0.465" (11.80mm) |
| Base Product Number | 070543 |
| Insulation Material | Polyester, Glass Filled |
| Number of Positions | 13 |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.130" (3.30mm) |
| Operating Temperature | -40°C ~ 105°C |
| Overall Contact Length | 0.470" (11.94mm) |
| Contact Finish - Mating | Gold |
| Contact Length - Mating | 0.240" (6.10mm) |
| Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Post | 74.8µin (1.90µm) |
| Contact Finish Thickness - Mating | 15.0µin (0.38µm) |
