Step1: Product

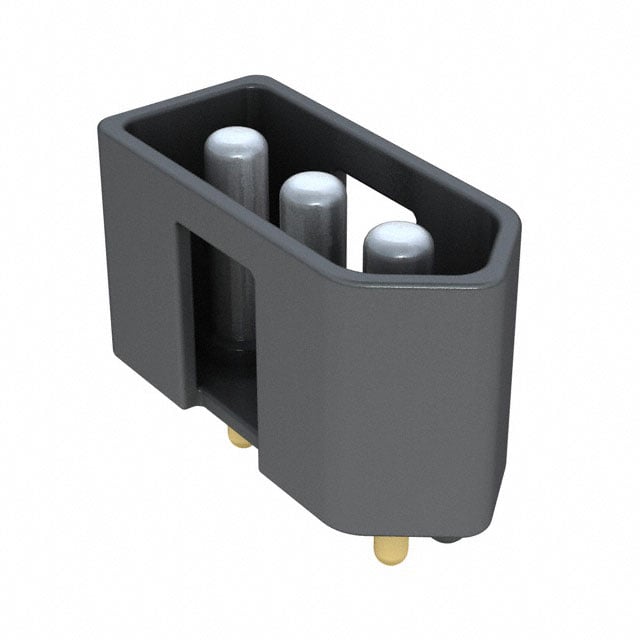

Molex 0010181031
Image shown is a representation only
Manufacturer
Manufacturer No
0010181031
Packaging
Bulk
Description
CONN HEADER VERT 3POS 5.03MM
Detailed Description
Connector Header Through Hole 3 position 0.198" (5.03mm)
DataSheet
Mfr
Molex
Style
Board to Board or Cable
Series
3099
Features
Board Guide
Packaging
Bulk
Shrouding
Shrouded - 4 Wall
Part Status
Active
Termination
Solder
Applications
General Purpose, Telecommunications
Contact Type
Male Pin
Contact Shape
Circular
Mounting Type
Through Hole
Connector Type
Header
Fastening Type
Latch Lock
Number of Rows
1
Pitch - Mating
0.198" (5.03mm)
Contact Material
Cartridge Brass
Insulation Color
Black
Insulation Height
0.421" (10.70mm)
Base Product Number
001018
Insulation Material
Polyester
Number of Positions
3
Contact Finish - Post
Tin
Contact Length - Post
0.170" (4.32mm)
Contact Finish - Mating
Tin
Number of Positions Loaded
2
Material Flammability Rating
UL94 V-0
Contact Finish Thickness - Mating
200.0µin (5.08µm)
| Attribute | Value |
|---|---|
| Mfr | Molex |
| Style | Board to Board or Cable |
| Series | 3099 |
| Features | Board Guide |
| Packaging | Bulk |
| Shrouding | Shrouded - 4 Wall |
| Part Status | Active |
| Termination | Solder |
| Applications | General Purpose, Telecommunications |
| Contact Type | Male Pin |
| Contact Shape | Circular |
| Mounting Type | Through Hole |
| Connector Type | Header |
| Fastening Type | Latch Lock |
| Number of Rows | 1 |
| Pitch - Mating | 0.198" (5.03mm) |
| Contact Material | Cartridge Brass |
| Insulation Color | Black |
| Insulation Height | 0.421" (10.70mm) |
| Base Product Number | 001018 |
| Insulation Material | Polyester |
| Number of Positions | 3 |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.170" (4.32mm) |
| Contact Finish - Mating | Tin |
| Number of Positions Loaded | 2 |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish Thickness - Mating | 200.0µin (5.08µm) |
