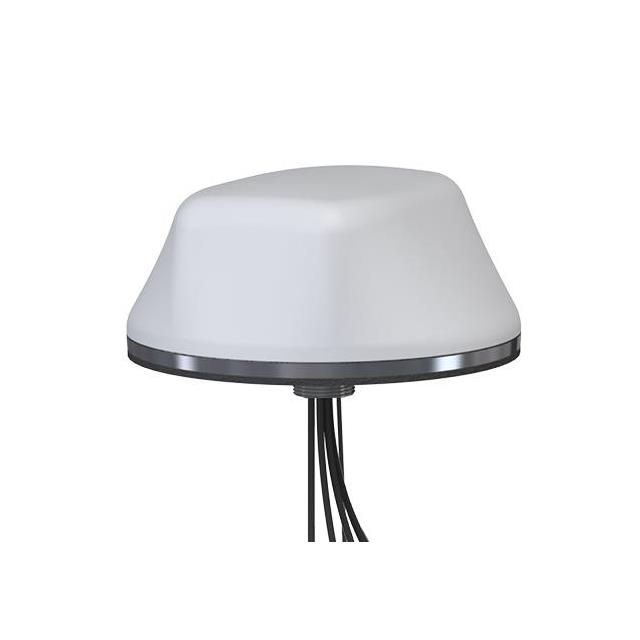

Mobile Mark Antenna Solutions LTMG508-3C3C3J3J2C-WHT-180
Image shown is a representation only
Manufacturer
Manufacturer No
LTMG508-3C3C3J3J2C-WHT-180
Packaging
Bulk
Description
5-Cable 2x5G/LTE 2xWiFi6e/7 GNSS
Detailed Description
RF ANTENNA 4G/5G, BeiDou, Galileo, GLONASS, GNSS, GPS, LTE, QZSS, Wi-Fi Dome RP-SMA Male, SMA Male Panel Mount
DataSheet
Gain
3dBi, 5dBi, 5dBi, 5dBi, 5dBi, 4dBi, 5dBi
VSWR
2, 2.2
Series
LTM
Features
Cable - 4.572m, LNA
Packaging
Bulk
Part Status
Active
Power - Max
10 W
Termination
RP-SMA Male, SMA Male
Antenna Type
Dome
Applications
4G/5G, BeiDou, Galileo, GLONASS, GNSS, GPS, LTE, QZSS, Wi-Fi
Height (Max)
2.380" (60.45mm)
Manufacturer
Mobile Mark Antenna Solutions
Mounting Type
Panel Mount
Frequency Group
Wide Band
Frequency Range
617MHz ~ 960MHz, 1.71GHz ~ 6GHz, 2.4GHz ~ 2.5GHz, 4.9GHz ~ 7.2GHz
Number of Bands
7
Ingress Protection
IP67, IP69K
RF Family/Standard
Cellular, Navigation, WiFi
Frequency (Center/Band)
788.5MHz, 1.561GHz, 1.575GHz, 1.602GHz, 2.45GHz, 3.855GHz, 6.05GHz
| Attribute | Value |
|---|---|
| Gain | 3dBi, 5dBi, 5dBi, 5dBi, 5dBi, 4dBi, 5dBi |
| VSWR | 2, 2.2 |
| Series | LTM |
| Features | Cable - 4.572m, LNA |
| Packaging | Bulk |
| Part Status | Active |
| Power - Max | 10 W |
| Termination | RP-SMA Male, SMA Male |
| Antenna Type | Dome |
| Applications | 4G/5G, BeiDou, Galileo, GLONASS, GNSS, GPS, LTE, QZSS, Wi-Fi |
| Height (Max) | 2.380" (60.45mm) |
| Manufacturer | Mobile Mark Antenna Solutions |
| Mounting Type | Panel Mount |
| Frequency Group | Wide Band |
| Frequency Range | 617MHz ~ 960MHz, 1.71GHz ~ 6GHz, 2.4GHz ~ 2.5GHz, 4.9GHz ~ 7.2GHz |
| Number of Bands | 7 |
| Ingress Protection | IP67, IP69K |
| RF Family/Standard | Cellular, Navigation, WiFi |
| Frequency (Center/Band) | 788.5MHz, 1.561GHz, 1.575GHz, 1.602GHz, 2.45GHz, 3.855GHz, 6.05GHz |
