Mobile Mark Antenna Solutions SMD-W-3J3J3J-BLK-180

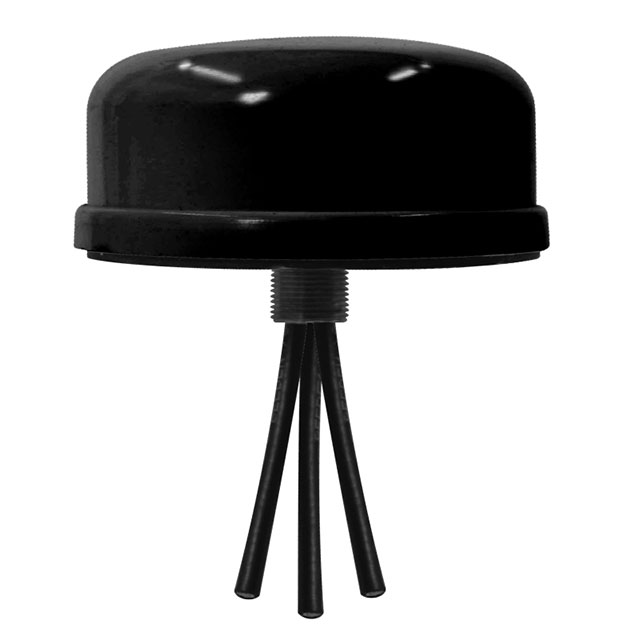

Image shown is a representation only
Manufacturer
Manufacturer No
SMD-W-3J3J3J-BLK-180
Packaging
Bulk
Description
3-CABLE WIFI 2.4/5 ANTENNA
Detailed Description
RF ANTENNA Wi-Fi Dome RP-SMA Male Surface Mount
DataSheet
Gain
4dBi
VSWR
2
Series
SMD
Features
Cable - 180mm
Packaging
Bulk
Part Status
Active
Power - Max
20 W
Termination
RP-SMA Male
Antenna Type
Dome
Applications
Wi-Fi
Height (Max)
1.496" (38.00mm)
Manufacturer
Mobile Mark Antenna Solutions
Mounting Type
Surface Mount
Frequency Group
UHF (2GHz ~ 3GHz), SHF (f > 4GHz)
Frequency Range
2.4GHz ~ 2.5GHz, 4.9GHz ~ 6GHz
Number of Bands
2
Ingress Protection
IPX7
RF Family/Standard
WiFi
Frequency (Center/Band)
2.45GHz, 6.95GHz
| Attribute | Value |
|---|---|
| Gain | 4dBi |
| VSWR | 2 |
| Series | SMD |
| Features | Cable - 180mm |
| Packaging | Bulk |
| Part Status | Active |
| Power - Max | 20 W |
| Termination | RP-SMA Male |
| Antenna Type | Dome |
| Applications | Wi-Fi |
| Height (Max) | 1.496" (38.00mm) |
| Manufacturer | Mobile Mark Antenna Solutions |
| Mounting Type | Surface Mount |
| Frequency Group | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) |
| Frequency Range | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 6GHz |
| Number of Bands | 2 |
| Ingress Protection | IPX7 |
| RF Family/Standard | WiFi |
| Frequency (Center/Band) | 2.45GHz, 6.95GHz |
