Step1: Product

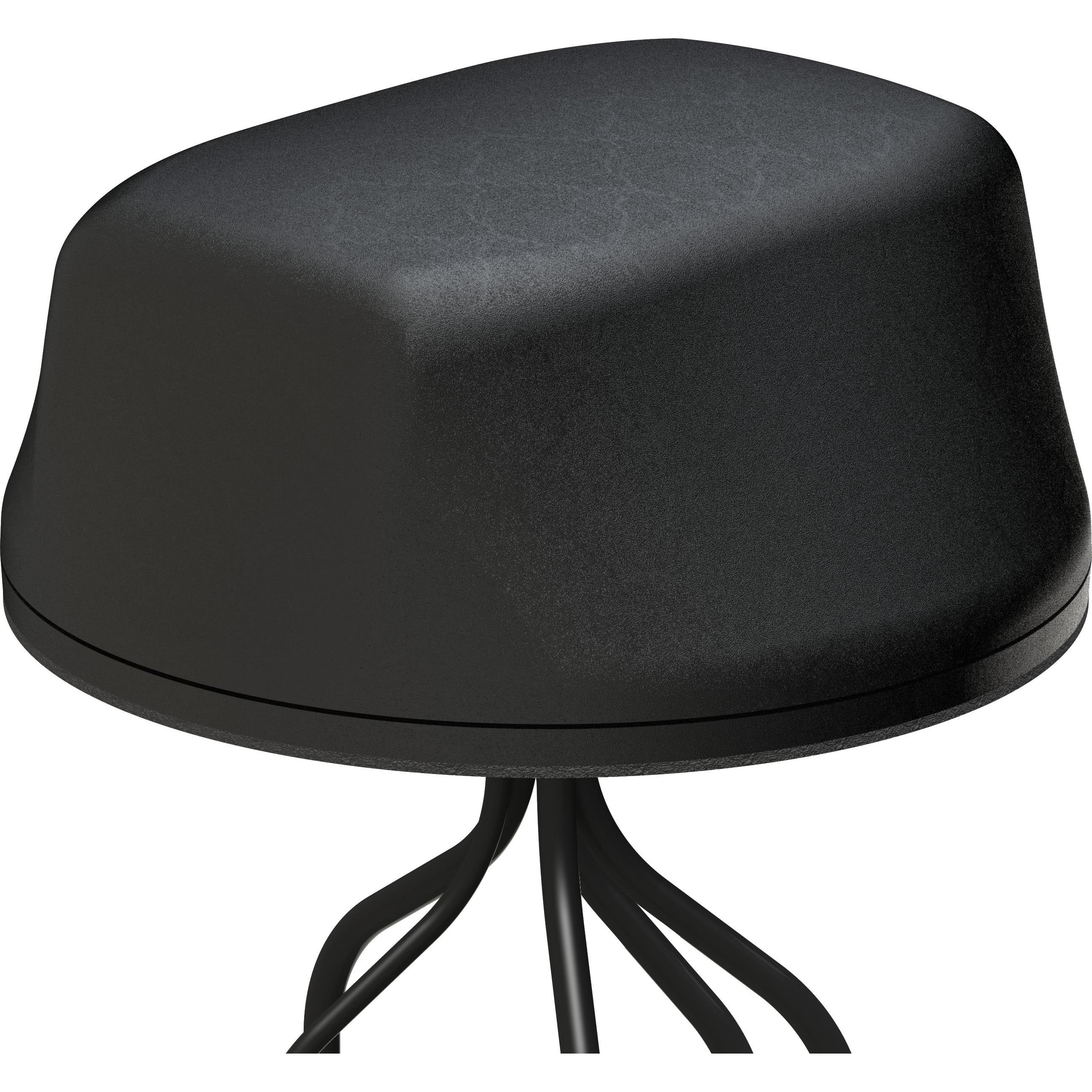

Mobile Mark Antenna Solutions LTM5013C3C3J3J2CWHT180SP753DKM
Image shown is a representation only
Manufacturer
Manufacturer No
LTM5013C3C3J3J2CWHT180SP753DKM
Packaging
Bulk
Description
RF ANT DOME RP-SMA SMD
Detailed Description
RF ANTENNA GPS, LTE, Wi-Fi Dome SMA (3), RP-SMA (2) Surface Mount
DataSheet
Gain
3dBi, 5dBi, 4dBi, 5dBi, 5dBi
VSWR
2
Series
LTM
Features
Cable - 4.572m
Packaging
Bulk
Part Status
Active
Power - Max
10 W
Termination
SMA (3), RP-SMA (2)
Antenna Type
Dome
Applications
GPS, LTE, Wi-Fi
Height (Max)
2.780" (70.60mm)
Manufacturer
Mobile Mark Antenna Solutions
Mounting Type
Surface Mount
Frequency Group
Wide Band
Frequency Range
694MHz ~ 960MHz, 1.573GHz ~ 1.577GHz, 1.71GHz ~ 2.17GHz, 2.4GHz ~ 2.5GHz, 4.9GHz ~ 6GHz
Number of Bands
5
Ingress Protection
IP67
RF Family/Standard
Cellular, Navigation, WiFi
Frequency (Center/Band)
827MHz, 1.575GHz, 1.94GHz, 2.45GHz, 5.45GHz
| Attribute | Value |
|---|---|
| Gain | 3dBi, 5dBi, 4dBi, 5dBi, 5dBi |
| VSWR | 2 |
| Series | LTM |
| Features | Cable - 4.572m |
| Packaging | Bulk |
| Part Status | Active |
| Power - Max | 10 W |
| Termination | SMA (3), RP-SMA (2) |
| Antenna Type | Dome |
| Applications | GPS, LTE, Wi-Fi |
| Height (Max) | 2.780" (70.60mm) |
| Manufacturer | Mobile Mark Antenna Solutions |
| Mounting Type | Surface Mount |
| Frequency Group | Wide Band |
| Frequency Range | 694MHz ~ 960MHz, 1.573GHz ~ 1.577GHz, 1.71GHz ~ 2.17GHz, 2.4GHz ~ 2.5GHz, 4.9GHz ~ 6GHz |
| Number of Bands | 5 |
| Ingress Protection | IP67 |
| RF Family/Standard | Cellular, Navigation, WiFi |
| Frequency (Center/Band) | 827MHz, 1.575GHz, 1.94GHz, 2.45GHz, 5.45GHz |
