Mini-Circuits JSW2-63VHDRP+

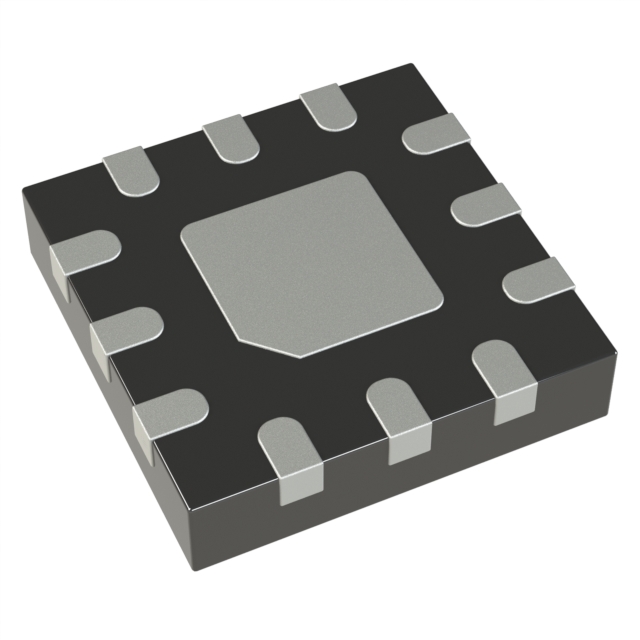

Image shown is a representation only
Manufacturer
Manufacturer No
JSW2-63VHDRP+
Package
12-UFQFN Exposed Pad
Packaging
Tape & Reel (TR)
Description
IC RF SWITCH SPDT 6GHZ 12QFN
Detailed Description
RF Switch IC General Purpose SPDT 50Ohm 12-QFN (2x2)
DataSheet
IIP3
81dBm
Circuit
SPDT
RF Type
General Purpose
Topology
Reflective
Impedance
50Ohm
Isolation
16dB
Packaging
Tape & Reel (TR)
Part Status
Active
Manufacturer
Mini-Circuits
Mounting Type
Surface Mount
Insertion Loss
0.9dB
Package / Case
12-UFQFN Exposed Pad
Test Frequency
6GHz
Frequency Range
5MHz ~ 6GHz
Voltage - Supply
2.3V ~ 5.5V
Operating Temperature
-40°C ~ 85°C
Supplier Device Package
12-QFN (2x2)
| Attribute | Value |
|---|---|
| IIP3 | 81dBm |
| Circuit | SPDT |
| RF Type | General Purpose |
| Topology | Reflective |
| Impedance | 50Ohm |
| Isolation | 16dB |
| Packaging | Tape & Reel (TR) |
| Part Status | Active |
| Manufacturer | Mini-Circuits |
| Mounting Type | Surface Mount |
| Insertion Loss | 0.9dB |
| Package / Case | 12-UFQFN Exposed Pad |
| Test Frequency | 6GHz |
| Frequency Range | 5MHz ~ 6GHz |
| Voltage - Supply | 2.3V ~ 5.5V |
| Operating Temperature | -40°C ~ 85°C |
| Supplier Device Package | 12-QFN (2x2) |
