Step1: Product

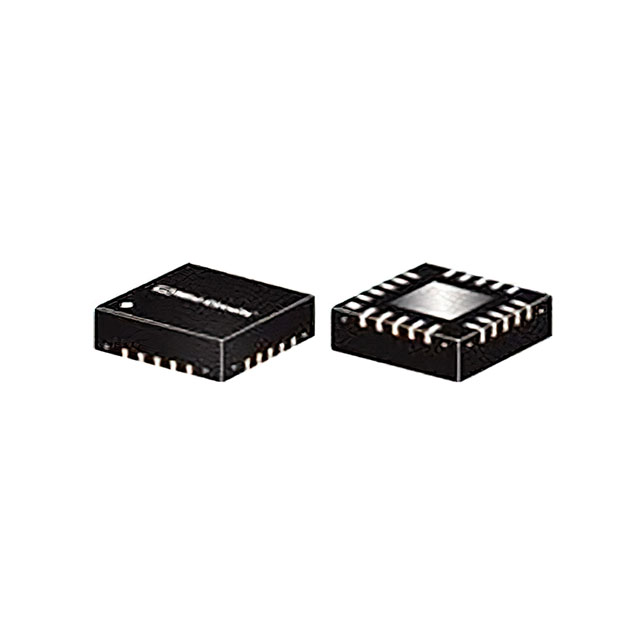

Mini-Circuits HSWA2-30DR+
Image shown is a representation only
Manufacturer
Manufacturer No
HSWA2-30DR+
Quantity
104
Availability
In Stock
Package
20-VFQFN Exposed Pad
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
IC RF SWITCH SPDT 3GHZ 20MLCP
Detailed Description
RF Switch IC CATV SPDT 50Ohm 20-MLCP (4x4)
Datasheet
IIP3
55dBm
P1dB
31dBm
Circuit
SPDT
RF Type
CATV
Topology
Absorptive
Impedance
50Ohm
Isolation
44dB
Packaging
Tape & Reel (TR); Cut Tape (CT)
Manufacturer
Mini-Circuits
Mounting Type
Surface Mount
Insertion Loss
1.2dB
Package / Case
20-VFQFN Exposed Pad
Test Frequency
3GHz
Frequency Range
0Hz ~ 3GHz
Voltage - Supply
2.7V ~ 3.3V
Operating Temperature
-40°C ~ 85°C
Supplier Device Package
20-MLCP (4x4)
| Attribute | Value |
|---|---|
| IIP3 | 55dBm |
| P1dB | 31dBm |
| Circuit | SPDT |
| RF Type | CATV |
| Topology | Absorptive |
| Impedance | 50Ohm |
| Isolation | 44dB |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Manufacturer | Mini-Circuits |
| Mounting Type | Surface Mount |
| Insertion Loss | 1.2dB |
| Package / Case | 20-VFQFN Exposed Pad |
| Test Frequency | 3GHz |
| Frequency Range | 0Hz ~ 3GHz |
| Voltage - Supply | 2.7V ~ 3.3V |
| Operating Temperature | -40°C ~ 85°C |
| Supplier Device Package | 20-MLCP (4x4) |
