Step1: Product
Microsemi Corporation MSTC160-16

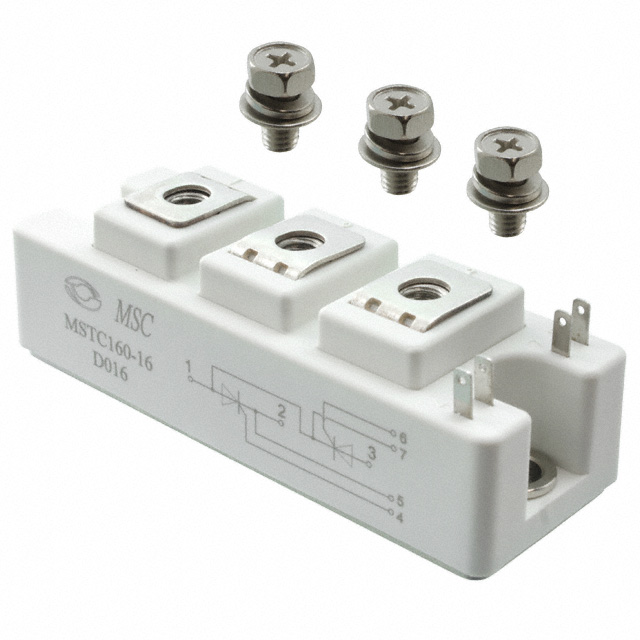

Image shown is a representation only
Manufacturer
Manufacturer No
MSTC160-16
Package
Module
Packaging
Bulk
Description
SCR MODULE 1.6KV MODULE
Detailed Description
SCR Module 1.6 kV Series Connection - All SCRs Screw Mount Module
DataSheet
Packaging
Bulk
Structure
Series Connection - All SCRs
Part Status
Obsolete
Manufacturer
Microsemi Corporation
Mounting Type
Screw Mount
Package / Case
Module
Voltage - Off State
1.6 kV
Operating Temperature
-40°C ~ 130°C (TJ)
Number of SCRs, Diodes
2 SCRs
Current - Hold (Ih) (Max)
400 mA
Current - Gate Trigger (Igt) (Max)
150 mA
Current - On State (It (AV)) (Max)
160 A
Voltage - Gate Trigger (Vgt) (Max)
3 V
Current - Non Rep. Surge 50, 60Hz (Itsm)
5400A @ 50Hz
| Attribute | Value |
|---|---|
| Packaging | Bulk |
| Structure | Series Connection - All SCRs |
| Part Status | Obsolete |
| Manufacturer | Microsemi Corporation |
| Mounting Type | Screw Mount |
| Package / Case | Module |
| Voltage - Off State | 1.6 kV |
| Operating Temperature | -40°C ~ 130°C (TJ) |
| Number of SCRs, Diodes | 2 SCRs |
| Current - Hold (Ih) (Max) | 400 mA |
| Current - Gate Trigger (Igt) (Max) | 150 mA |
| Current - On State (It (AV)) (Max) | 160 A |
| Voltage - Gate Trigger (Vgt) (Max) | 3 V |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 5400A @ 50Hz |
