Step1: Product
Microchip Technology MIC3809YMM

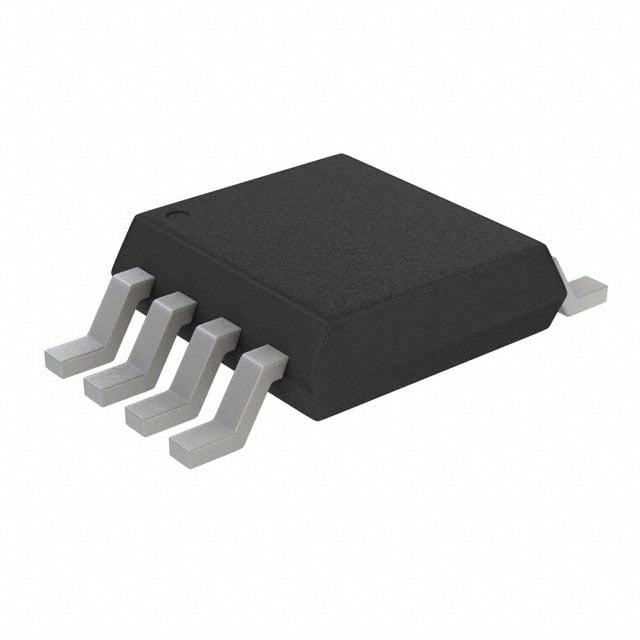

Image shown is a representation only
Manufacturer
Manufacturer No
MIC3809YMM
Quantity
3
Availability
In Stock
Package
8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
Packaging
Tube
Description
IC REG CTRLR MULT TOPOLOGY 8MSOP
Detailed Description
Full-Bridge, Half-Bridge, Push-Pull Regulator Positive, Isolation Capable Output Step-Up/Step-Down DC-DC Controller IC 8-MSOP
Datasheet
Function
Step-Up/Step-Down
Topology
Full-Bridge, Half-Bridge, Push-Pull
Packaging
Tube
Clock Sync
No
Output Type
Transistor Driver
Manufacturer
Microchip Technology
Mounting Type
Surface Mount
Output Phases
1
Package / Case
8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
Control Features
Frequency Control
Duty Cycle (Max)
49%
Number of Outputs
1
Base Product Number
MIC3809
Output Configuration
Positive, Isolation Capable
Frequency - Switching
200kHz
Operating Temperature
-40°C ~ 85°C (TA)
Synchronous Rectifier
No
Supplier Device Package
8-MSOP
Voltage - Supply (Vcc/Vdd)
4.1V ~ 14V
| Attribute | Value |
|---|---|
| Function | Step-Up/Step-Down |
| Topology | Full-Bridge, Half-Bridge, Push-Pull |
| Packaging | Tube |
| Clock Sync | No |
| Output Type | Transistor Driver |
| Manufacturer | Microchip Technology |
| Mounting Type | Surface Mount |
| Output Phases | 1 |
| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
| Control Features | Frequency Control |
| Duty Cycle (Max) | 49% |
| Number of Outputs | 1 |
| Base Product Number | MIC3809 |
| Output Configuration | Positive, Isolation Capable |
| Frequency - Switching | 200kHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Synchronous Rectifier | No |
| Supplier Device Package | 8-MSOP |
| Voltage - Supply (Vcc/Vdd) | 4.1V ~ 14V |
