Step1: Product
Microchip Technology HV9150K6-G

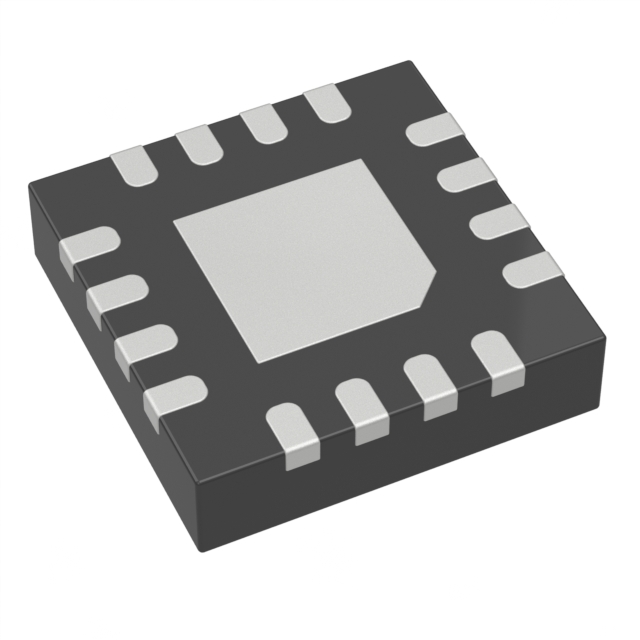

Image shown is a representation only
Manufacturer
Manufacturer No
HV9150K6-G
Quantity
214
Availability
In Stock
Package
16-VFQFN Exposed Pad
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
IC REG CTRLR BOOST 16VQFN
Detailed Description
Boost Regulator Positive Output Step-Up DC-DC Controller IC 16-QFN (3x3)
Datasheet
Function
Step-Up
Topology
Boost
Packaging
Tape & Reel (TR); Cut Tape (CT)
Clock Sync
No
Output Type
Transistor Driver
Manufacturer
Microchip Technology
Mounting Type
Surface Mount
Output Phases
1
Package / Case
16-VFQFN Exposed Pad
Control Features
Enable, Frequency Control
Duty Cycle (Max)
87.5%
Number of Outputs
1
Base Product Number
HV9150
Output Configuration
Positive
Frequency - Switching
40kHz ~ 400kHz
Operating Temperature
-25°C ~ 125°C (TJ)
Synchronous Rectifier
No
Supplier Device Package
16-QFN (3x3)
Voltage - Supply (Vcc/Vdd)
2.7V ~ 4.5V
| Attribute | Value |
|---|---|
| Function | Step-Up |
| Topology | Boost |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Clock Sync | No |
| Output Type | Transistor Driver |
| Manufacturer | Microchip Technology |
| Mounting Type | Surface Mount |
| Output Phases | 1 |
| Package / Case | 16-VFQFN Exposed Pad |
| Control Features | Enable, Frequency Control |
| Duty Cycle (Max) | 87.5% |
| Number of Outputs | 1 |
| Base Product Number | HV9150 |
| Output Configuration | Positive |
| Frequency - Switching | 40kHz ~ 400kHz |
| Operating Temperature | -25°C ~ 125°C (TJ) |
| Synchronous Rectifier | No |
| Supplier Device Package | 16-QFN (3x3) |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 4.5V |
