Step1: Product
Microchip Technology DSC6001HE2B-015.0000

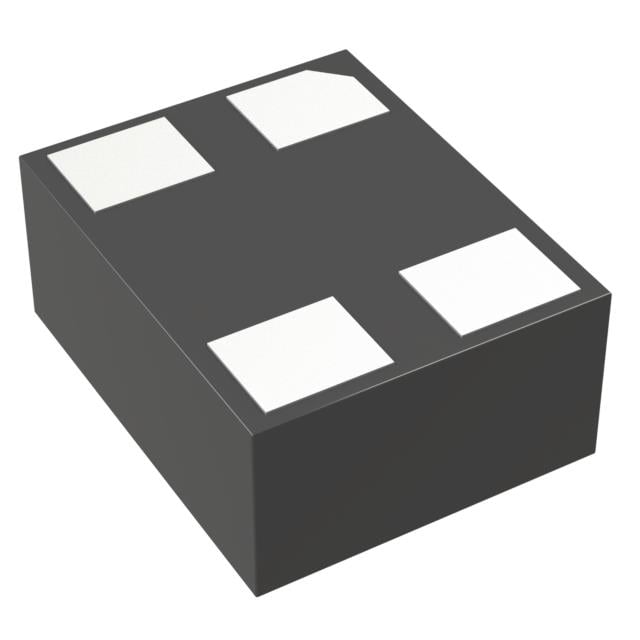

Image shown is a representation only
Manufacturer
Manufacturer No
DSC6001HE2B-015.0000
Package
4-VFLGA
Packaging
Bag
Description
MEMS OSCILLATOR, ULTRA LOW POWER
Detailed Description
15 MHz XO (Standard) CMOS Oscillator 1.71V ~ 3.63V Enable/Disable 4-VFLGA
Datasheet
Mfr
Microchip Technology
Type
XO (Standard)
Output
CMOS
Series
DSC60XXB
Function
Enable/Disable
Frequency
15 MHz
Packaging
Bag
Mounting Type
Surface Mount
Base Resonator
MEMS
Package / Case
4-VFLGA
Size / Dimension
0.063" L x 0.047" W (1.60mm x 1.20mm)
Voltage - Supply
1.71V ~ 3.63V
Frequency Stability
±25ppm
Height - Seated (Max)
0.035" (0.89mm)
Operating Temperature
-20°C ~ 70°C
Current - Supply (Max)
1.3mA (Typ)
Supplier Device Package
4-VFLGA (1.6x1.2)
| Attribute | Value |
|---|---|
| Mfr | Microchip Technology |
| Type | XO (Standard) |
| Output | CMOS |
| Series | DSC60XXB |
| Function | Enable/Disable |
| Frequency | 15 MHz |
| Packaging | Bag |
| Mounting Type | Surface Mount |
| Base Resonator | MEMS |
| Package / Case | 4-VFLGA |
| Size / Dimension | 0.063" L x 0.047" W (1.60mm x 1.20mm) |
| Voltage - Supply | 1.71V ~ 3.63V |
| Frequency Stability | ±25ppm |
| Height - Seated (Max) | 0.035" (0.89mm) |
| Operating Temperature | -20°C ~ 70°C |
| Current - Supply (Max) | 1.3mA (Typ) |
| Supplier Device Package | 4-VFLGA (1.6x1.2) |
