Step1: Product
Microchip Technology ATA5743P3-TKSY

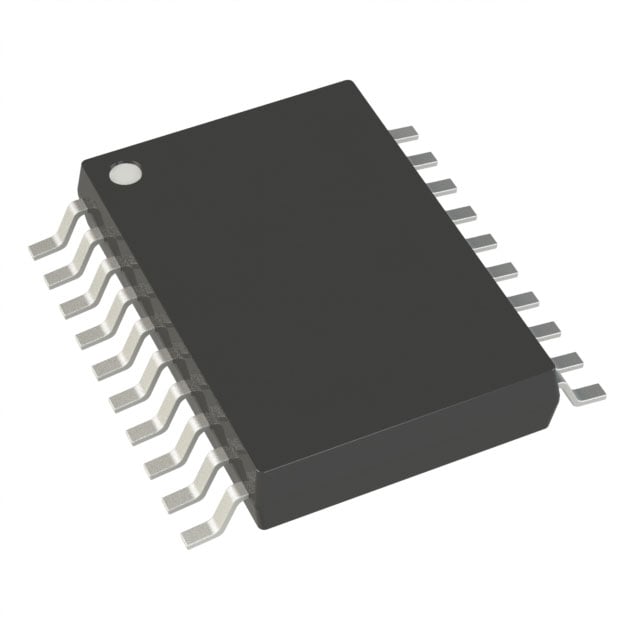

Image shown is a representation only
Manufacturer
Manufacturer No
ATA5743P3-TKSY
Package
20-LSSOP (0.173", 4.40mm Width)
Packaging
Tube
Description
RF RX ASK/FSK 300-450MHZ 20SSO
Detailed Description
- RF Receiver ASK, FSK 300MHz ~ 450MHz -110dBm 10kBaud PCB, Surface Mount 20-SSO
DataSheet
Frequency
300MHz ~ 450MHz
Packaging
Tube
Part Status
Obsolete
Sensitivity
-110dBm
Applications
RKE, Telemetering, Security Technology
Manufacturer
Microchip Technology
Mounting Type
Surface Mount
Data Interface
PCB, Surface Mount
Package / Case
20-LSSOP (0.173", 4.40mm Width)
Data Rate (Max)
10kBaud
Voltage - Supply
4.5V ~ 5.5V
Antenna Connector
PCB, Surface Mount
Current - Receiving
7.5mA
Operating Temperature
-40°C ~ 105°C
Modulation or Protocol
ASK, FSK
Supplier Device Package
20-SSO
| Attribute | Value |
|---|---|
| Frequency | 300MHz ~ 450MHz |
| Packaging | Tube |
| Part Status | Obsolete |
| Sensitivity | -110dBm |
| Applications | RKE, Telemetering, Security Technology |
| Manufacturer | Microchip Technology |
| Mounting Type | Surface Mount |
| Data Interface | PCB, Surface Mount |
| Package / Case | 20-LSSOP (0.173", 4.40mm Width) |
| Data Rate (Max) | 10kBaud |
| Voltage - Supply | 4.5V ~ 5.5V |
| Antenna Connector | PCB, Surface Mount |
| Current - Receiving | 7.5mA |
| Operating Temperature | -40°C ~ 105°C |
| Modulation or Protocol | ASK, FSK |
| Supplier Device Package | 20-SSO |
