Step1: Product
Microchip Technology ATA5760N3C-TGQW

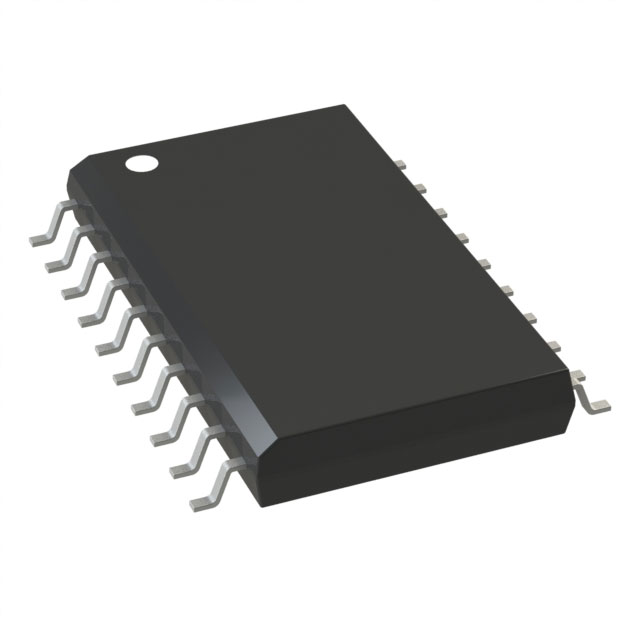

Image shown is a representation only
Manufacturer
Manufacturer No
ATA5760N3C-TGQW
Package
20-SOIC (0.295", 7.50mm Width)
Packaging
Tape & Reel (TR)
Description
IC RECEIVER UHF ASK/FSK 20SOIC
Detailed Description
- RF Receiver UHF, ASK, FSK 868MHz ~ 870MHz, 902MHz ~ 928MHz -110dBm 10kBaud PCB, Surface Mount 20-SO
DataSheet
Features
ESD Protection, RSSI Equipped
Frequency
868MHz ~ 870MHz, 902MHz ~ 928MHz
Packaging
Tape & Reel (TR)
Part Status
Obsolete
Sensitivity
-110dBm
Applications
Telemetering, Security Systems
Manufacturer
Microchip Technology
Mounting Type
Surface Mount
Package / Case
20-SOIC (0.295", 7.50mm Width)
Data Rate (Max)
10kBaud
Voltage - Supply
4.5V ~ 5.5V
Antenna Connector
PCB, Surface Mount
Current - Receiving
9.6mA, 9.9mA
Operating Temperature
-40°C ~ 105°C (TA)
Modulation or Protocol
UHF, ASK, FSK
Supplier Device Package
20-SO
| Attribute | Value |
|---|---|
| Features | ESD Protection, RSSI Equipped |
| Frequency | 868MHz ~ 870MHz, 902MHz ~ 928MHz |
| Packaging | Tape & Reel (TR) |
| Part Status | Obsolete |
| Sensitivity | -110dBm |
| Applications | Telemetering, Security Systems |
| Manufacturer | Microchip Technology |
| Mounting Type | Surface Mount |
| Package / Case | 20-SOIC (0.295", 7.50mm Width) |
| Data Rate (Max) | 10kBaud |
| Voltage - Supply | 4.5V ~ 5.5V |
| Antenna Connector | PCB, Surface Mount |
| Current - Receiving | 9.6mA, 9.9mA |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Modulation or Protocol | UHF, ASK, FSK |
| Supplier Device Package | 20-SO |
