Step1: Product

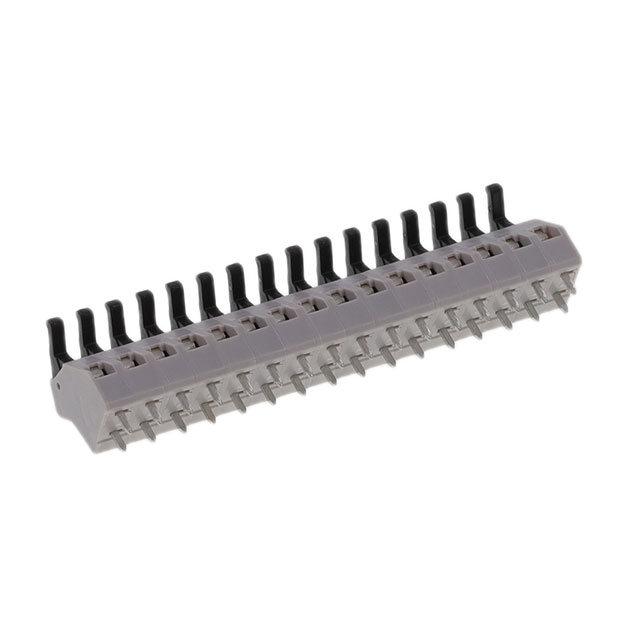

METZ CONNECT USA Inc. AST0451604
Image shown is a representation only
Manufacturer
Manufacturer No
AST0451604
Packaging
Bulk
Description
SPRING CLAMP TERMINAL BLOCK, 45
Detailed Description
16 Position Wire to Board Terminal Block 45° (135°) Angle with Board 0.197" (5.00mm) Through Hole
DataSheet
Color
Gray
Pitch
0.197" (5.00mm)
Current
13 A
Voltage
300 V
Features
Lever Actuated
Packaging
Bulk
Wire Gauge
14-28 AWG
Part Status
Active
Manufacturer
METZ CONNECT USA Inc.
Mounting Type
Through Hole
Housing Material
Polyamide (PA46), Nylon 4/6
Number of Levels
1
Wire Termination
Screwless - Spring Cage, Tension Clamp
Mating Orientation
45° (135°) Angle with Board
Base Product Number
AST045
Positions Per Level
16
Operating Temperature
-40°C ~ 105°C
Clamp Material - Plating
Steel
Contact Material - Plating
Copper Alloy - Tin Plated
| Attribute | Value |
|---|---|
| Color | Gray |
| Pitch | 0.197" (5.00mm) |
| Current | 13 A |
| Voltage | 300 V |
| Features | Lever Actuated |
| Packaging | Bulk |
| Wire Gauge | 14-28 AWG |
| Part Status | Active |
| Manufacturer | METZ CONNECT USA Inc. |
| Mounting Type | Through Hole |
| Housing Material | Polyamide (PA46), Nylon 4/6 |
| Number of Levels | 1 |
| Wire Termination | Screwless - Spring Cage, Tension Clamp |
| Mating Orientation | 45° (135°) Angle with Board |
| Base Product Number | AST045 |
| Positions Per Level | 16 |
| Operating Temperature | -40°C ~ 105°C |
| Clamp Material - Plating | Steel |
| Contact Material - Plating | Copper Alloy - Tin Plated |
