Step1: Product

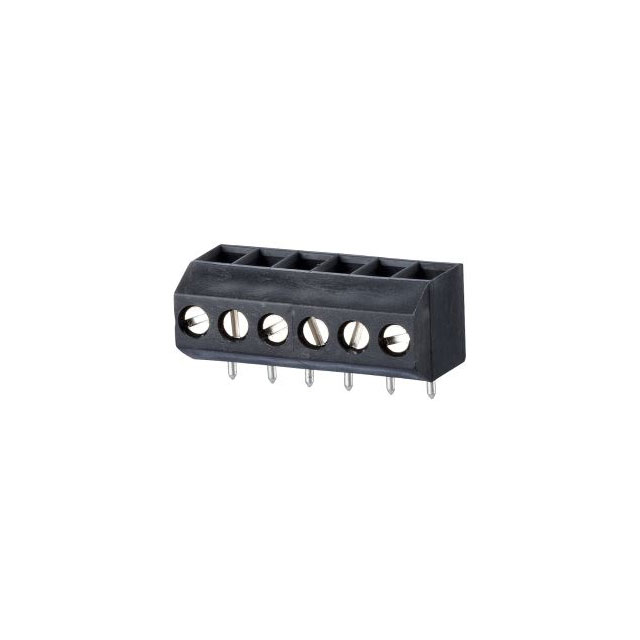

METZ CONNECT USA Inc. 31147104
Image shown is a representation only
Manufacturer
Manufacturer No
31147104
Packaging
Bulk
Description
SCREW TYPE TERMINAL BLOCK, PCB,
Detailed Description
4 Position Wire to Board Terminal Block Vertical with Board 0.197" (5.00mm) Through Hole
DataSheet
Color
Black
Pitch
0.197" (5.00mm)
Current
15 A
Voltage
300 V
Packaging
Bulk
Wire Gauge
14-22 AWG
Part Status
Active
Manufacturer
METZ CONNECT USA Inc.
Screw Thread
M3
Mounting Type
Through Hole
Torque - Screw
0.79 Nm (7.0 Lb-In)
Housing Material
Polyamide (PA66), Nylon 6/6
Number of Levels
1
Wire Termination
Screw - Leaf Spring, Wire Guard
Mating Orientation
Vertical with Board
Positions Per Level
4
Operating Temperature
-40°C ~ 105°C
Clamp Material - Plating
Copper Alloy - Tin Plated
Screw Material - Plating
Zinc Plated
Contact Material - Plating
Copper Alloy - Tin Plated
| Attribute | Value |
|---|---|
| Color | Black |
| Pitch | 0.197" (5.00mm) |
| Current | 15 A |
| Voltage | 300 V |
| Packaging | Bulk |
| Wire Gauge | 14-22 AWG |
| Part Status | Active |
| Manufacturer | METZ CONNECT USA Inc. |
| Screw Thread | M3 |
| Mounting Type | Through Hole |
| Torque - Screw | 0.79 Nm (7.0 Lb-In) |
| Housing Material | Polyamide (PA66), Nylon 6/6 |
| Number of Levels | 1 |
| Wire Termination | Screw - Leaf Spring, Wire Guard |
| Mating Orientation | Vertical with Board |
| Positions Per Level | 4 |
| Operating Temperature | -40°C ~ 105°C |
| Clamp Material - Plating | Copper Alloy - Tin Plated |
| Screw Material - Plating | Zinc Plated |
| Contact Material - Plating | Copper Alloy - Tin Plated |
