Step1: Product
Mentech Technology USA Inc. MHW1306SG1R0M

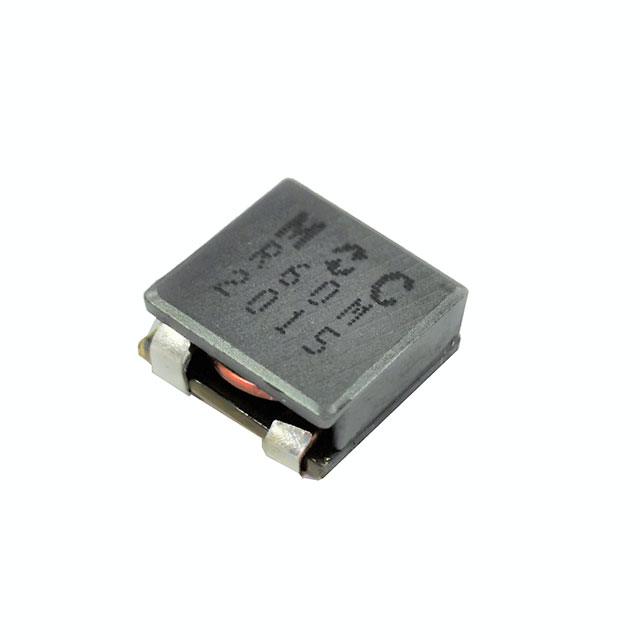

Image shown is a representation only
Manufacturer
Manufacturer No
MHW1306SG1R0M
Package
Nonstandard
Packaging
Tape & Reel (TR)
Description
FIXED IND 1UH 20A 1.18 MOHM SMD
Detailed Description
1 µH Planar Inductor 20 A 1.18mOhm Max Nonstandard
DataSheet
Mfr
Mentech Technology USA Inc.
Type
Planar
Packaging
Tape & Reel (TR)
Tolerance
±20%
Inductance
1 µH
Part Status
Active
Mounting Type
Surface Mount
Package / Case
Nonstandard
Size / Dimension
0.500" L x 0.492" W (12.70mm x 12.50mm)
DC Resistance (DCR)
1.18mOhm Max
Current Rating (Amps)
20 A
Height - Seated (Max)
0.240" (6.10mm)
Operating Temperature
-40°C ~ 125°C
Current - Saturation (Isat)
30A
| Attribute | Value |
|---|---|
| Mfr | Mentech Technology USA Inc. |
| Type | Planar |
| Packaging | Tape & Reel (TR) |
| Tolerance | ±20% |
| Inductance | 1 µH |
| Part Status | Active |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Size / Dimension | 0.500" L x 0.492" W (12.70mm x 12.50mm) |
| DC Resistance (DCR) | 1.18mOhm Max |
| Current Rating (Amps) | 20 A |
| Height - Seated (Max) | 0.240" (6.10mm) |
| Operating Temperature | -40°C ~ 125°C |
| Current - Saturation (Isat) | 30A |
