Step1: Product

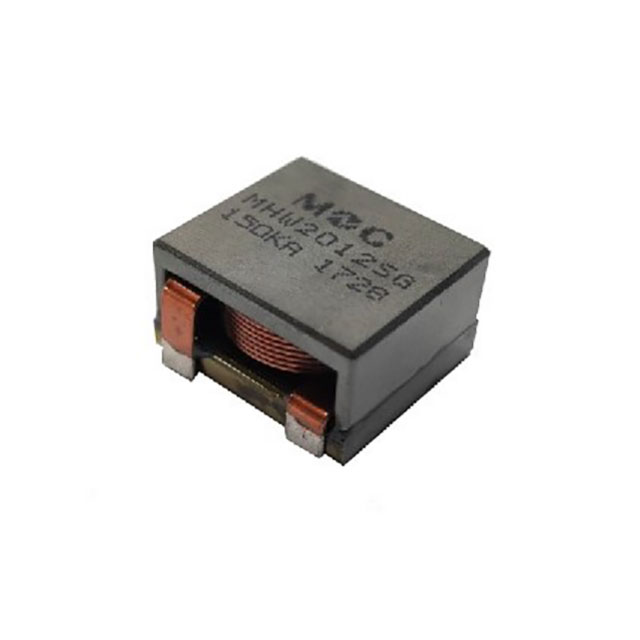

Mentech Technology USA Inc. MHW2012SG150KA
Image shown is a representation only
Manufacturer
Manufacturer No
MHW2012SG150KA
Package
Nonstandard
Packaging
Tape & Reel (TR)
Description
FIXED IND 15UH 10A 3.9 MOHM SMD
Detailed Description
15 µH Planar Inductor 10 A 3.9mOhm Max Nonstandard
DataSheet
Mfr
Mentech Technology USA Inc.
Type
Planar
Packaging
Tape & Reel (TR)
Tolerance
±10%
Inductance
15 µH
Part Status
Active
Mounting Type
Surface Mount
Package / Case
Nonstandard
Size / Dimension
0.878" L x 0.866" W (22.30mm x 22.00mm)
DC Resistance (DCR)
3.9mOhm Max
Current Rating (Amps)
10 A
Height - Seated (Max)
0.492" (12.50mm)
Operating Temperature
-40°C ~ 125°C
Current - Saturation (Isat)
15.3A
| Attribute | Value |
|---|---|
| Mfr | Mentech Technology USA Inc. |
| Type | Planar |
| Packaging | Tape & Reel (TR) |
| Tolerance | ±10% |
| Inductance | 15 µH |
| Part Status | Active |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Size / Dimension | 0.878" L x 0.866" W (22.30mm x 22.00mm) |
| DC Resistance (DCR) | 3.9mOhm Max |
| Current Rating (Amps) | 10 A |
| Height - Seated (Max) | 0.492" (12.50mm) |
| Operating Temperature | -40°C ~ 125°C |
| Current - Saturation (Isat) | 15.3A |
