Step1: Product

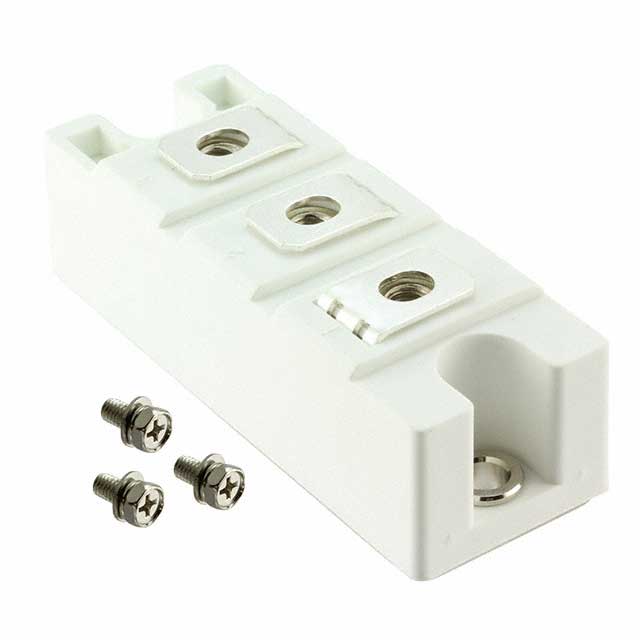

MCC (Micro Commercial Components) MF150C06F2-BP
Image shown is a representation only
Manufacturer
Manufacturer No
MF150C06F2-BP
Package
F2 Module
Packaging
Bulk
Description
DIODE MODULE GP 600V 150A F2
Detailed Description
Diode Array 1 Pair Series Connection 600 V 150A Chassis Mount F2 Module
Datasheet
Speed
Fast Recovery =< 500ns, > 200mA (Io)
Packaging
Bulk
Technology
Standard
Manufacturer
MCC (Micro Commercial Components)
Mounting Type
Chassis Mount
Package / Case
F2 Module
Base Product Number
MF150C06
Diode Configuration
1 Pair Series Connection
Supplier Device Package
F2
Reverse Recovery Time (trr)
130 ns
Current - Reverse Leakage @ Vr
1 mA @ 600 V
Voltage - DC Reverse (Vr) (Max)
600 V
Operating Temperature - Junction
-40°C ~ 150°C
Voltage - Forward (Vf) (Max) @ If
1.4 V @ 150 A
Current - Average Rectified (Io) (per Diode)
150A
| Attribute | Value |
|---|---|
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Packaging | Bulk |
| Technology | Standard |
| Manufacturer | MCC (Micro Commercial Components) |
| Mounting Type | Chassis Mount |
| Package / Case | F2 Module |
| Base Product Number | MF150C06 |
| Diode Configuration | 1 Pair Series Connection |
| Supplier Device Package | F2 |
| Reverse Recovery Time (trr) | 130 ns |
| Current - Reverse Leakage @ Vr | 1 mA @ 600 V |
| Voltage - DC Reverse (Vr) (Max) | 600 V |
| Operating Temperature - Junction | -40°C ~ 150°C |
| Voltage - Forward (Vf) (Max) @ If | 1.4 V @ 150 A |
| Current - Average Rectified (Io) (per Diode) | 150A |
