Step1: Product
MCC (Micro Commercial Components) MBRD640CT-TP

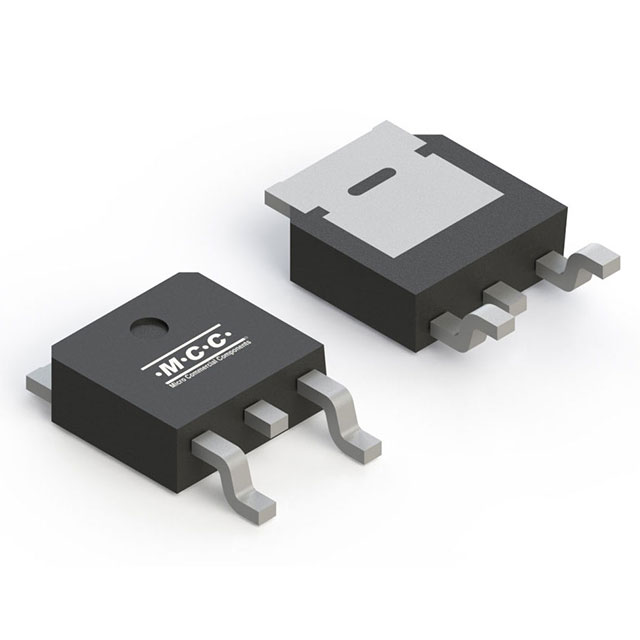

Image shown is a representation only
Manufacturer
Manufacturer No
MBRD640CT-TP
Quantity
3265
Availability
In Stock
Package
TO-252-3, DPAK (2 Leads + Tab), SC-63
Packaging
Bulk
Description
DIODE ARRAY SCHOTTKY 40V 6A DPAK
Detailed Description
Diode Array 1 Pair Common Cathode 40 V 6A Surface Mount TO-252-3, DPAK (2 Leads + Tab), SC-63
DataSheet
Speed
Fast Recovery =< 500ns, > 200mA (Io)
Packaging
Bulk
Technology
Schottky
Part Status
Active
Manufacturer
MCC (Micro Commercial Components)
Mounting Type
Surface Mount
Package / Case
TO-252-3, DPAK (2 Leads + Tab), SC-63
Base Product Number
MBRD640
Diode Configuration
1 Pair Common Cathode
Supplier Device Package
DPAK
Current - Reverse Leakage @ Vr
100 µA @ 40 V
Voltage - DC Reverse (Vr) (Max)
40 V
Operating Temperature - Junction
-55°C ~ 150°C
Voltage - Forward (Vf) (Max) @ If
540 mV @ 3 A
Current - Average Rectified (Io) (per Diode)
6A
| Attribute | Value |
|---|---|
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Packaging | Bulk |
| Technology | Schottky |
| Part Status | Active |
| Manufacturer | MCC (Micro Commercial Components) |
| Mounting Type | Surface Mount |
| Package / Case | TO-252-3, DPAK (2 Leads + Tab), SC-63 |
| Base Product Number | MBRD640 |
| Diode Configuration | 1 Pair Common Cathode |
| Supplier Device Package | DPAK |
| Current - Reverse Leakage @ Vr | 100 µA @ 40 V |
| Voltage - DC Reverse (Vr) (Max) | 40 V |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Voltage - Forward (Vf) (Max) @ If | 540 mV @ 3 A |
| Current - Average Rectified (Io) (per Diode) | 6A |
