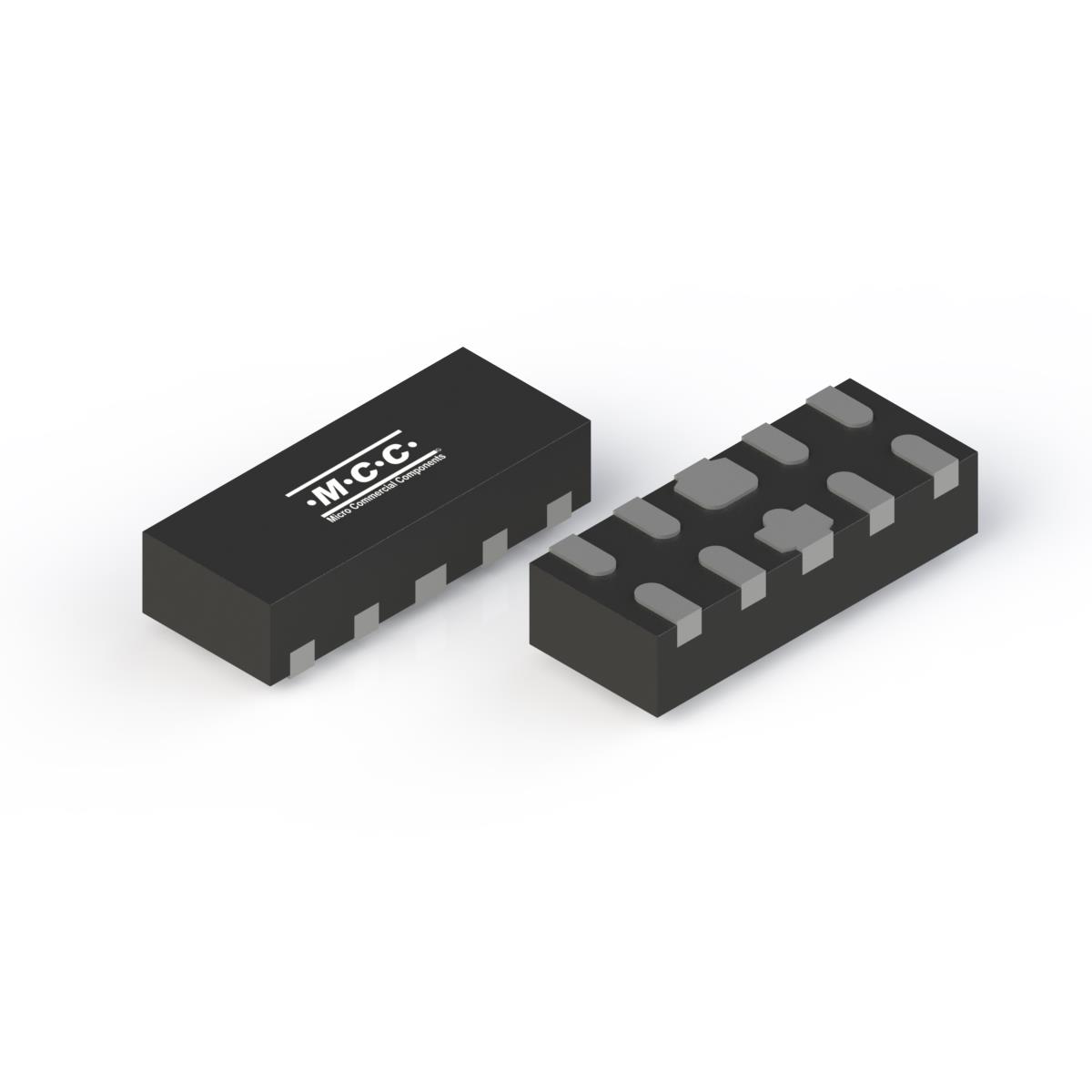

MCC (Micro Commercial Components) ESDULC0524P5-TP
Image shown is a representation only
Manufacturer
Manufacturer No
ESDULC0524P5-TP
Package
10-XFDFN
Packaging
Tape & Reel (TR)
Description
TVS DIODE 5VWM 12VC 10DFN
Detailed Description
12V Clamp 4.5A (8/20µs) Ipp Tvs Diode Surface Mount 10-DFN (2.5x1)
DataSheet
Mfr
MCC (Micro Commercial Components)
Type
Steering (Rail to Rail)
Packaging
Tape & Reel (TR)
Part Status
Active
Applications
General Purpose
Mounting Type
Surface Mount
Package / Case
10-XFDFN
Power - Peak Pulse
54W
Operating Temperature
-40°C ~ 125°C (TJ)
Power Line Protection
Yes
Capacitance @ Frequency
0.45pF @ 1MHz
Supplier Device Package
10-DFN (2.5x1)
Unidirectional Channels
4
Voltage - Breakdown (Min)
7V
Voltage - Clamping (Max) @ Ipp
12V
Voltage - Reverse Standoff (Typ)
5V (Max)
Current - Peak Pulse (10/1000µs)
4.5A (8/20µs)
| Attribute | Value |
|---|---|
| Mfr | MCC (Micro Commercial Components) |
| Type | Steering (Rail to Rail) |
| Packaging | Tape & Reel (TR) |
| Part Status | Active |
| Applications | General Purpose |
| Mounting Type | Surface Mount |
| Package / Case | 10-XFDFN |
| Power - Peak Pulse | 54W |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Power Line Protection | Yes |
| Capacitance @ Frequency | 0.45pF @ 1MHz |
| Supplier Device Package | 10-DFN (2.5x1) |
| Unidirectional Channels | 4 |
| Voltage - Breakdown (Min) | 7V |
| Voltage - Clamping (Max) @ Ipp | 12V |
| Voltage - Reverse Standoff (Typ) | 5V (Max) |
| Current - Peak Pulse (10/1000µs) | 4.5A (8/20µs) |
