Step1: Product
MCC (Micro Commercial Components) ESDLC7V0AE2-TP

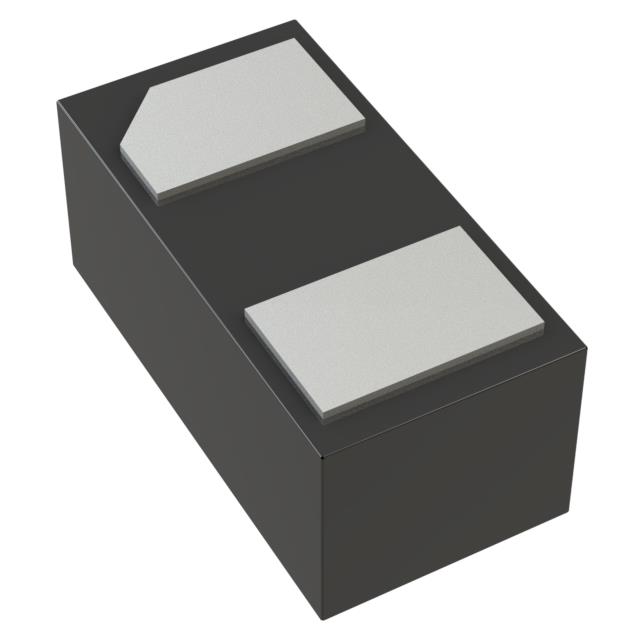

Image shown is a representation only
Manufacturer
Manufacturer No
ESDLC7V0AE2-TP
Quantity
9,720
Availability
In Stock
Package
0201 (0603 Metric)
Packaging
Cut Tape (CT); Bulk
Description
TVS DIODE 7VWM 17VC 0201A
Detailed Description
17V Clamp 6A (8/20µs) Ipp Tvs Diode Surface Mount 0201-A
Datasheet
Mfr
MCC (Micro Commercial Components)
Type
Zener
Packaging
Cut Tape (CT); Bulk
Applications
General Purpose
Mounting Type
Surface Mount
Package / Case
0201 (0603 Metric)
Power - Peak Pulse
100W
Base Product Number
ESDLC7
Operating Temperature
-55°C ~ 125°C (TJ)
Power Line Protection
No
Bidirectional Channels
1
Capacitance @ Frequency
15pF @ 1MHz
Supplier Device Package
0201-A
Voltage - Breakdown (Min)
7.5V
Voltage - Clamping (Max) @ Ipp
17V
Voltage - Reverse Standoff (Typ)
7V (Max)
Current - Peak Pulse (10/1000µs)
6A (8/20µs)
| Attribute | Value |
|---|---|
| Mfr | MCC (Micro Commercial Components) |
| Type | Zener |
| Packaging | Cut Tape (CT); Bulk |
| Applications | General Purpose |
| Mounting Type | Surface Mount |
| Package / Case | 0201 (0603 Metric) |
| Power - Peak Pulse | 100W |
| Base Product Number | ESDLC7 |
| Operating Temperature | -55°C ~ 125°C (TJ) |
| Power Line Protection | No |
| Bidirectional Channels | 1 |
| Capacitance @ Frequency | 15pF @ 1MHz |
| Supplier Device Package | 0201-A |
| Voltage - Breakdown (Min) | 7.5V |
| Voltage - Clamping (Max) @ Ipp | 17V |
| Voltage - Reverse Standoff (Typ) | 7V (Max) |
| Current - Peak Pulse (10/1000µs) | 6A (8/20µs) |
