Step1: Product

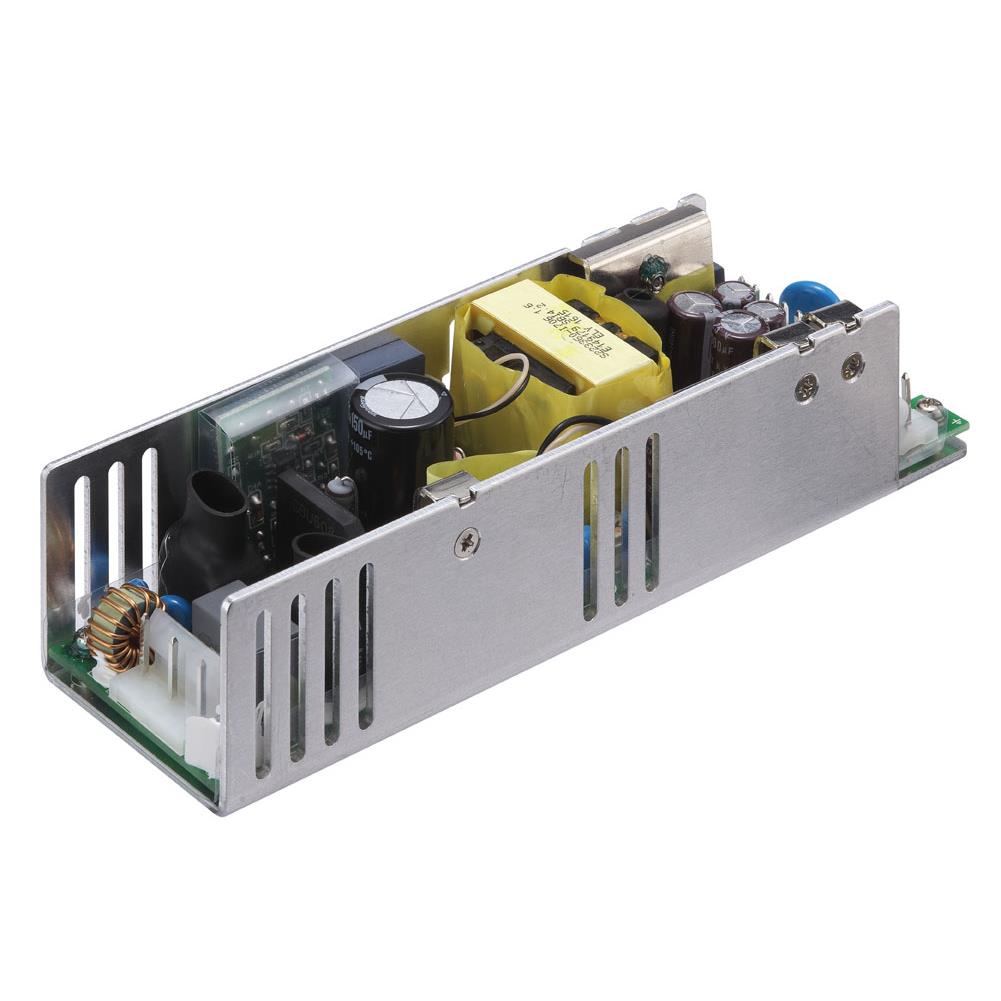

Magic Power MPM-706H
Image shown is a representation only
Manufacturer
Manufacturer No
MPM-706H
Packaging
Bulk
Description
AC/DC CNVT 5V 12V 3.3V -12V 62W
Detailed Description
Open Frame AC DC Converters 4 Output 5V 12V -12V 3.3V 90 ~ 264 VAC Input
DataSheet
Mfr
Magic Power
Type
Open Frame
Series
MPM-706H (60W)
Features
Universal Input
Packaging
Bulk
Efficiency
76%
Part Status
Active
Applications
Medical
Mounting Type
Chassis Mount
Power (Watts)
62W (96W Forced Air)
Approval Agency
CB, TUV
Standard Number
60601-1
Voltage - Input
90 ~ 264 VAC
Size / Dimension
6.69" L x 2.05" W x 1.54" H (170.0mm x 52.0mm x 39.0mm)
Number of Outputs
4
Current - Output 1
500 mA
Current - Output 2
3 A
Current - Output 3
6 A
Current - Output 4
8 A
Voltage - Output 1
5V
Voltage - Output 2
12V
Voltage - Output 3
-12V
Voltage - Output 4
3.3V
Voltage - Isolation
3 kV
Minimum Load Required
No
Operating Temperature
0°C ~ 70°C (With Derating)
| Attribute | Value |
|---|---|
| Mfr | Magic Power |
| Type | Open Frame |
| Series | MPM-706H (60W) |
| Features | Universal Input |
| Packaging | Bulk |
| Efficiency | 76% |
| Part Status | Active |
| Applications | Medical |
| Mounting Type | Chassis Mount |
| Power (Watts) | 62W (96W Forced Air) |
| Approval Agency | CB, TUV |
| Standard Number | 60601-1 |
| Voltage - Input | 90 ~ 264 VAC |
| Size / Dimension | 6.69" L x 2.05" W x 1.54" H (170.0mm x 52.0mm x 39.0mm) |
| Number of Outputs | 4 |
| Current - Output 1 | 500 mA |
| Current - Output 2 | 3 A |
| Current - Output 3 | 6 A |
| Current - Output 4 | 8 A |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | 12V |
| Voltage - Output 3 | -12V |
| Voltage - Output 4 | 3.3V |
| Voltage - Isolation | 3 kV |
| Minimum Load Required | No |
| Operating Temperature | 0°C ~ 70°C (With Derating) |
