Step1: Product
Magic Power MPI-810H

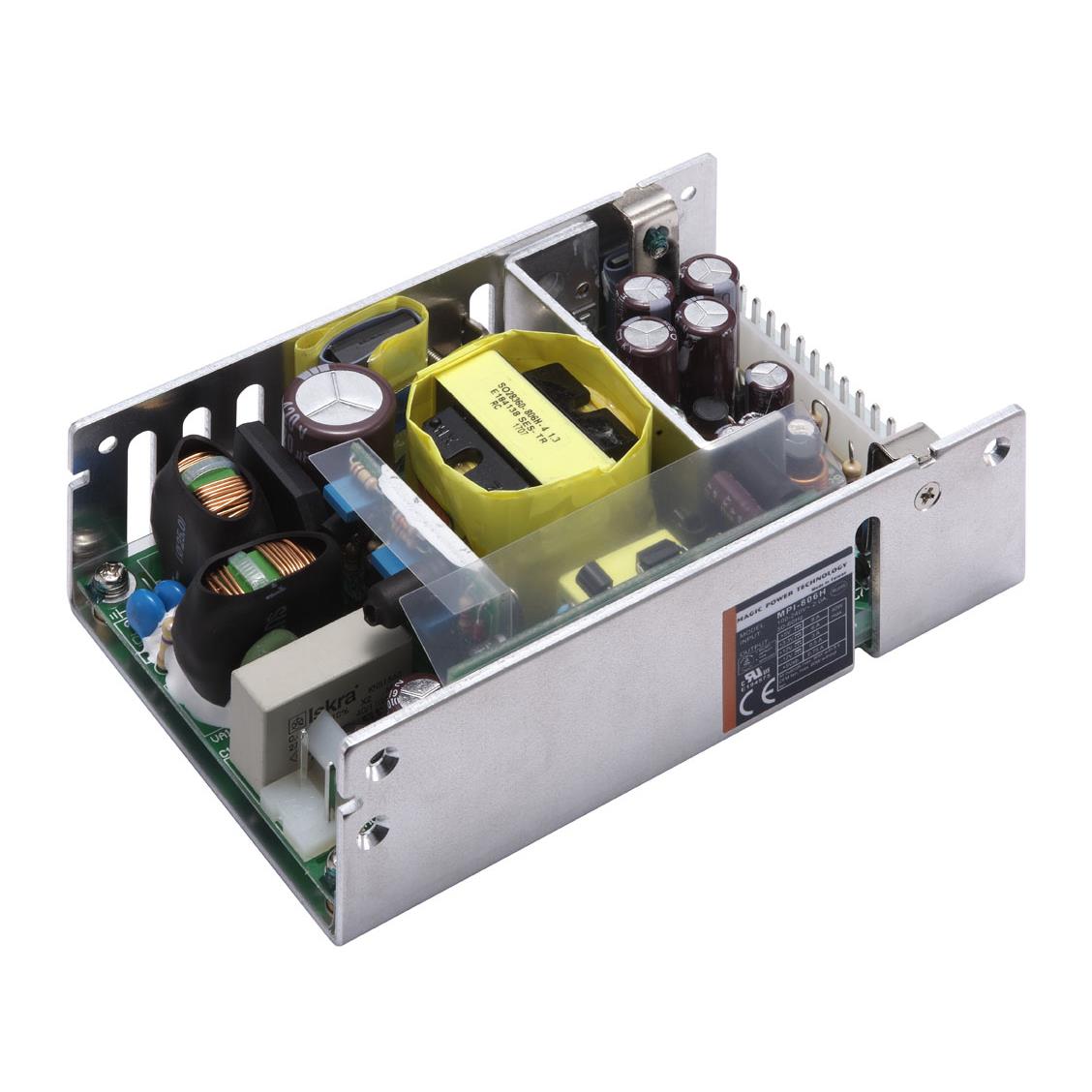

Image shown is a representation only
Manufacturer
Manufacturer No
MPI-810H
Packaging
Bulk
Description
AC/DC CNVT 5V 3.3V 12V -12V 194W
Detailed Description
Open Frame AC DC Converters 4 Output 5V 3.3V 12V -12V 90 ~ 260 VAC Input
DataSheet
Mfr
Magic Power
Type
Open Frame
Series
MPI-810H (120W)
Features
Standby Output, Universal Input
Packaging
Bulk
Efficiency
70%
Part Status
Active
Applications
ITE (Commercial)
Mounting Type
Chassis Mount
Power (Watts)
194W
Approval Agency
CB, cUL, UL
Standard Number
60950-1
Voltage - Input
90 ~ 260 VAC
Size / Dimension
6.00" L x 3.30" W x 1.50" H (152.4mm x 83.8mm x 38.1mm)
Number of Outputs
4
Current - Output 1
1 A
Current - Output 2
6 A
Current - Output 3
12 A
Current - Output 4
14 A
Voltage - Output 1
5V
Voltage - Output 2
3.3V
Voltage - Output 3
12V
Voltage - Output 4
-12V
Operating Temperature
0°C ~ 50°C
| Attribute | Value |
|---|---|
| Mfr | Magic Power |
| Type | Open Frame |
| Series | MPI-810H (120W) |
| Features | Standby Output, Universal Input |
| Packaging | Bulk |
| Efficiency | 70% |
| Part Status | Active |
| Applications | ITE (Commercial) |
| Mounting Type | Chassis Mount |
| Power (Watts) | 194W |
| Approval Agency | CB, cUL, UL |
| Standard Number | 60950-1 |
| Voltage - Input | 90 ~ 260 VAC |
| Size / Dimension | 6.00" L x 3.30" W x 1.50" H (152.4mm x 83.8mm x 38.1mm) |
| Number of Outputs | 4 |
| Current - Output 1 | 1 A |
| Current - Output 2 | 6 A |
| Current - Output 3 | 12 A |
| Current - Output 4 | 14 A |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | 3.3V |
| Voltage - Output 3 | 12V |
| Voltage - Output 4 | -12V |
| Operating Temperature | 0°C ~ 50°C |
