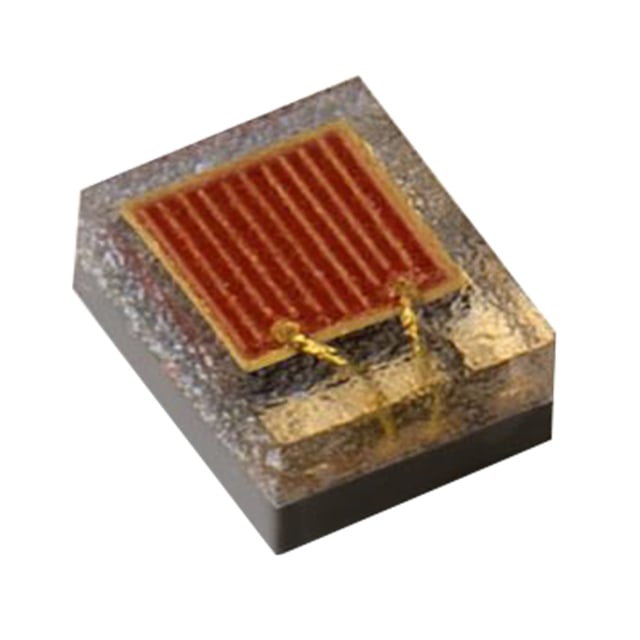

Lumileds LXZ1-PL01
Image shown is a representation only
Manufacturer
Manufacturer No
LXZ1-PL01
Package
0705 (1713 Metric)
Packaging
Tape & Reel (TR)
Description
LED LUXEON Z AMBER 590NM SMD
Detailed Description
LED Lighting Color LUXEON Z Amber 590nm (585nm ~ 595nm) 0705 (1713 Metric)
DataSheet
Mfr
Lumileds
Color
Amber
Series
LUXEON Z
Packaging
Tape & Reel (TR)
Wavelength
590nm (585nm ~ 595nm)
Part Status
Obsolete
Current - Max
700mA
Mounting Type
Surface Mount
Viewing Angle
145°
Current - Test
500mA
Package / Case
0705 (1713 Metric)
Size / Dimension
0.067" L x 0.051" W (1.70mm x 1.30mm)
Temperature - Test
25°C
Base Product Number
LXZ1
Height - Seated (Max)
0.026" (0.66mm)
Supplier Device Package
SMD
Lumens/Watt @ Current - Test
52 lm/W
Voltage - Forward (Vf) (Typ)
2.15V
Thermal Resistance of Package
8°C/W
Luminous Flux @ Current/Temperature
56lm (48lm ~ 64lm)
| Attribute | Value |
|---|---|
| Mfr | Lumileds |
| Color | Amber |
| Series | LUXEON Z |
| Packaging | Tape & Reel (TR) |
| Wavelength | 590nm (585nm ~ 595nm) |
| Part Status | Obsolete |
| Current - Max | 700mA |
| Mounting Type | Surface Mount |
| Viewing Angle | 145° |
| Current - Test | 500mA |
| Package / Case | 0705 (1713 Metric) |
| Size / Dimension | 0.067" L x 0.051" W (1.70mm x 1.30mm) |
| Temperature - Test | 25°C |
| Base Product Number | LXZ1 |
| Height - Seated (Max) | 0.026" (0.66mm) |
| Supplier Device Package | SMD |
| Lumens/Watt @ Current - Test | 52 lm/W |
| Voltage - Forward (Vf) (Typ) | 2.15V |
| Thermal Resistance of Package | 8°C/W |
| Luminous Flux @ Current/Temperature | 56lm (48lm ~ 64lm) |
