Step1: Product
Lumileds LXZ1-PL01-307

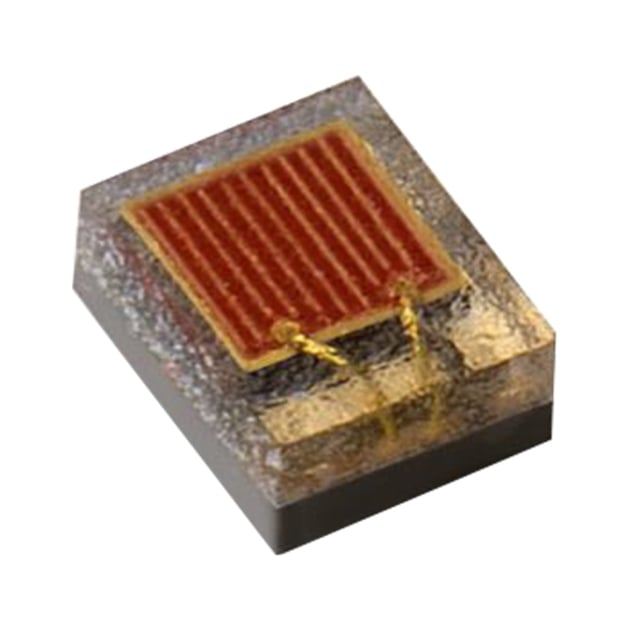

Image shown is a representation only
Manufacturer
Manufacturer No
LXZ1-PL01-307
Package
0705 (1713 Metric)
Packaging
Tape & Reel (TR)
Description
LED LUXEON Z AMBER 588NM SMD
Detailed Description
LED Lighting Color LUXEON Z Amber 588nm 0705 (1713 Metric)
Datasheet
Mfr
Lumileds
Color
Amber
Series
LUXEON Z
Packaging
Tape & Reel (TR)
Wavelength
588nm
Current - Max
700mA
Mounting Type
Surface Mount
Viewing Angle
145°
Current - Test
500mA
Package / Case
0705 (1713 Metric)
Size / Dimension
0.067" L x 0.051" W (1.70mm x 1.30mm)
Temperature - Test
25°C
Base Product Number
LXZ1
Height - Seated (Max)
0.038" (0.96mm)
Supplier Device Package
SMD
Lumens/Watt @ Current - Test
48 lm/W
Voltage - Forward (Vf) (Typ)
2.15V
| Attribute | Value |
|---|---|
| Mfr | Lumileds |
| Color | Amber |
| Series | LUXEON Z |
| Packaging | Tape & Reel (TR) |
| Wavelength | 588nm |
| Current - Max | 700mA |
| Mounting Type | Surface Mount |
| Viewing Angle | 145° |
| Current - Test | 500mA |
| Package / Case | 0705 (1713 Metric) |
| Size / Dimension | 0.067" L x 0.051" W (1.70mm x 1.30mm) |
| Temperature - Test | 25°C |
| Base Product Number | LXZ1 |
| Height - Seated (Max) | 0.038" (0.96mm) |
| Supplier Device Package | SMD |
| Lumens/Watt @ Current - Test | 48 lm/W |
| Voltage - Forward (Vf) (Typ) | 2.15V |
