Step1: Product
Lumileds LXM3-PD01

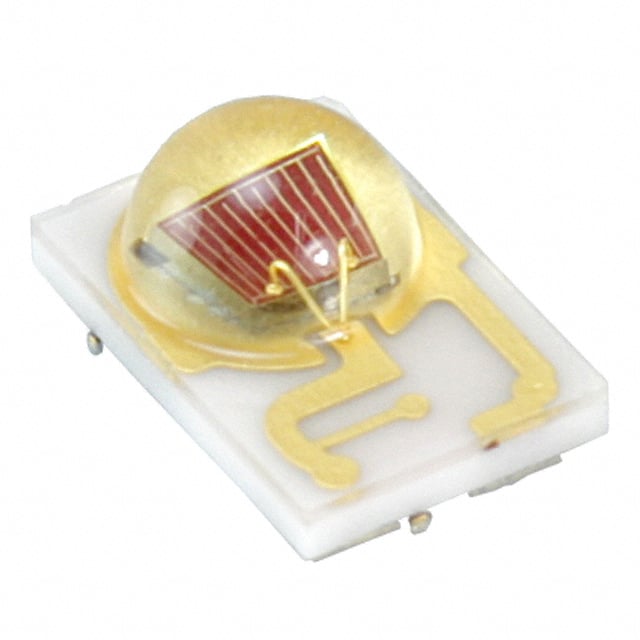

Image shown is a representation only
Manufacturer
Manufacturer No
LXM3-PD01
Date Code
17+
Quantity
1,000
Availability
In Stock
Package
1812 (4532 Metric)
Packaging
Tape & Reel (TR); Cut Tape (CT)
Description
LED LUXEON REBEL RED 655NM SMD
Detailed Description
LED Lighting Color LUXEON Rebel Color Red 655nm (Typ) 1812 (4532 Metric)
Datasheet
Mfr
Lumileds
Color
Red
Series
LUXEON Rebel Color
Packaging
Tape & Reel (TR); Cut Tape (CT)
Wavelength
655nm (Typ)
Current - Max
700mA
Mounting Type
Surface Mount
Viewing Angle
125°
Current - Test
350mA
Package / Case
1812 (4532 Metric)
Size / Dimension
0.177" L x 0.120" W (4.49mm x 3.05mm)
Temperature - Test
25°C
Base Product Number
LXM3
Height - Seated (Max)
0.083" (2.10mm)
Supplier Device Package
SMD
Voltage - Forward (Vf) (Typ)
2.1V
Thermal Resistance of Package
8°C/W
Luminous Flux @ Current/Temperature
305mW (260mW ~ 350mW)
| Attribute | Value |
|---|---|
| Mfr | Lumileds |
| Color | Red |
| Series | LUXEON Rebel Color |
| Packaging | Tape & Reel (TR); Cut Tape (CT) |
| Wavelength | 655nm (Typ) |
| Current - Max | 700mA |
| Mounting Type | Surface Mount |
| Viewing Angle | 125° |
| Current - Test | 350mA |
| Package / Case | 1812 (4532 Metric) |
| Size / Dimension | 0.177" L x 0.120" W (4.49mm x 3.05mm) |
| Temperature - Test | 25°C |
| Base Product Number | LXM3 |
| Height - Seated (Max) | 0.083" (2.10mm) |
| Supplier Device Package | SMD |
| Voltage - Forward (Vf) (Typ) | 2.1V |
| Thermal Resistance of Package | 8°C/W |
| Luminous Flux @ Current/Temperature | 305mW (260mW ~ 350mW) |
