Step1: Product

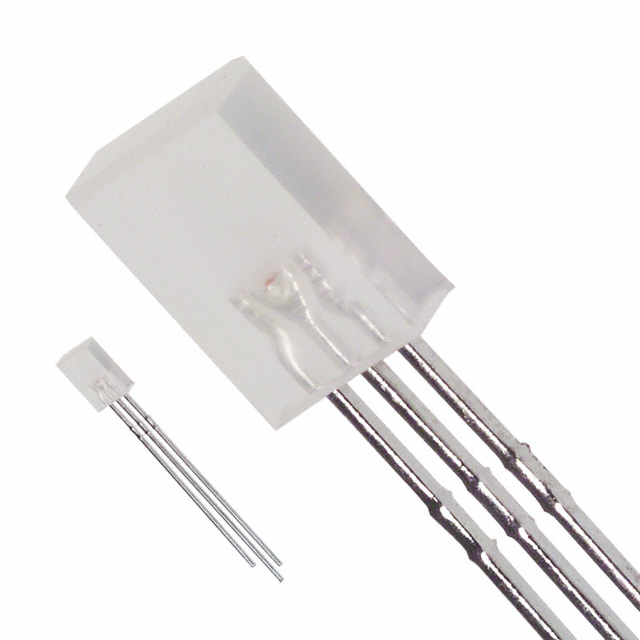

Lumex Opto/Components Inc. SSL-LX2577IGW
Image shown is a representation only
Manufacturer
Manufacturer No
SSL-LX2577IGW
Package
Radial - 3 Leads
Packaging
Bulk
Description
LED GRN/RED DIFF RECT 2X5MM T/H
Detailed Description
Green, Red LED Indication - Discrete 2.2V Green, 2V Red Radial - 3 Leads
DataSheet
Mfr
Lumex Opto/Components Inc.
Color
Green, Red
Lens Size
5.00mm x 2.00mm
Packaging
Bulk
Lens Color
White
Lens Style
Rectangle with Flat Top
Part Status
Active
Height (Max)
7.00mm
Configuration
Common Cathode
Mounting Type
Through Hole
Viewing Angle
90°
Current - Test
20mA Green, 20mA Red
Package / Case
Radial - 3 Leads
Lens Transparency
Diffused
Wavelength - Peak
565nm Green, 635nm Red
Base Product Number
SSL-LX2577
Millicandela Rating
10mcd Green, 10mcd Red
Supplier Device Package
Rectangular 2mmx5mm
Voltage - Forward (Vf) (Typ)
2.2V Green, 2V Red
| Attribute | Value |
|---|---|
| Mfr | Lumex Opto/Components Inc. |
| Color | Green, Red |
| Lens Size | 5.00mm x 2.00mm |
| Packaging | Bulk |
| Lens Color | White |
| Lens Style | Rectangle with Flat Top |
| Part Status | Active |
| Height (Max) | 7.00mm |
| Configuration | Common Cathode |
| Mounting Type | Through Hole |
| Viewing Angle | 90° |
| Current - Test | 20mA Green, 20mA Red |
| Package / Case | Radial - 3 Leads |
| Lens Transparency | Diffused |
| Wavelength - Peak | 565nm Green, 635nm Red |
| Base Product Number | SSL-LX2577 |
| Millicandela Rating | 10mcd Green, 10mcd Red |
| Supplier Device Package | Rectangular 2mmx5mm |
| Voltage - Forward (Vf) (Typ) | 2.2V Green, 2V Red |
