Step1: Product
Lumex Opto/Components Inc. SML-LX0603GW-TR

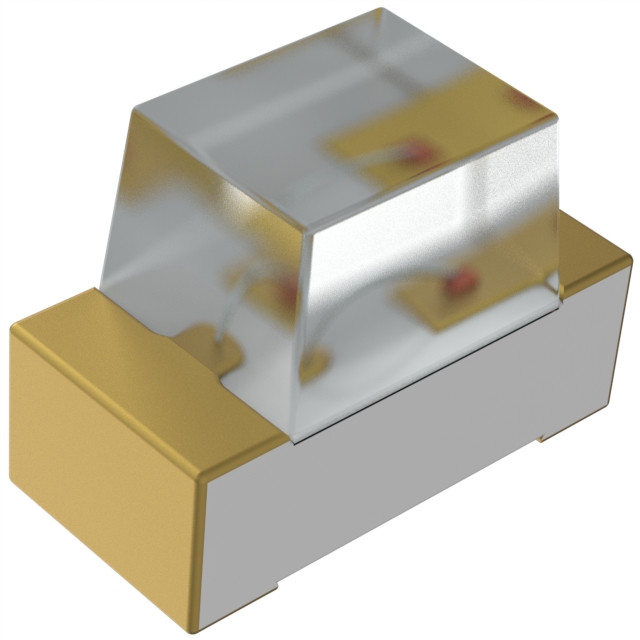

Image shown is a representation only
Manufacturer
Manufacturer No
SML-LX0603GW-TR
Quantity
670
Availability
In Stock
Package
0603 (1608 Metric)
Packaging
Tape & Reel (TR); Cut Tape (CT);
Description
LED GREEN DIFFUSED SMD
Detailed Description
Green LED Indication - Discrete 2.2V 0603 (1608 Metric)
DataSheet
Mfr
Lumex Opto/Components Inc.
Color
Green
Lens Size
1.00mm x 0.80mm
Packaging
Tape & Reel (TR); Cut Tape (CT); Digi-Reel®
Lens Color
White
Lens Style
Rectangle with Flat Top
Part Status
Active
Height (Max)
0.60mm
Configuration
Standard
Mounting Type
Surface Mount
Viewing Angle
160°
Current - Test
20mA
Package / Case
0603 (1608 Metric)
Size / Dimension
1.60mm L x 0.80mm W
Lens Transparency
Diffused
Wavelength - Peak
565nm
Base Product Number
SML-LX0603
Millicandela Rating
18mcd
Voltage - Forward (Vf) (Typ)
2.2V
| Attribute | Value |
|---|---|
| Mfr | Lumex Opto/Components Inc. |
| Color | Green |
| Lens Size | 1.00mm x 0.80mm |
| Packaging | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Lens Color | White |
| Lens Style | Rectangle with Flat Top |
| Part Status | Active |
| Height (Max) | 0.60mm |
| Configuration | Standard |
| Mounting Type | Surface Mount |
| Viewing Angle | 160° |
| Current - Test | 20mA |
| Package / Case | 0603 (1608 Metric) |
| Size / Dimension | 1.60mm L x 0.80mm W |
| Lens Transparency | Diffused |
| Wavelength - Peak | 565nm |
| Base Product Number | SML-LX0603 |
| Millicandela Rating | 18mcd |
| Voltage - Forward (Vf) (Typ) | 2.2V |
